Low Voltage Cable
Copper Conductor

SIS XHHW-2, CT, Switchboard
XLPE Insulation, 600V – Copper
Used as switchboard cables only.
Physical Data
SIS XHHW-2, XLPE, Insulated
| SIS/XHHW-2 XLPE Insulated | ||||
|---|---|---|---|---|
| Size AWG or kcmil |
Number of Strands |
Insulation Thickness |
Approximate Outside Diameter |
Approximate Net Weight |
| mil | in | lb/kft | ||
| 14 | 7 | 30 | 0.13 | 19 |
| 12 | 7 | 30 | 0.15 | 27 |
| 10 | 7 | 30 | 0.18 | 41 |
| 8 | 7 | 45 | 0.24 | 68 |
| 6 | 7 | 45 | 0.27 | 98 |
| 4 | 7 | 45 | 0.32 | 150 |
| 2 | 7 | 45 | 0.38 | 231 |
| 1 | 19 | 55 | 0.44 | 293 |
| 1/0 | 19 | 55 | 0.48 | 365 |
| 2/0 | 19 | 55 | 0.52 | 455 |
| 3/0 | 19 | 55 | 0.57 | 567 |
| 4/0 | 19 | 55 | 0.63 | 709 |
| 250 | 37 | 65 | 0.69 | 838 |
| 300 | 37 | 65 | 0.75 | 998 |
| 350 | 37 | 65 | 0.8 | 1159 |
| 400 | 37 | 65 | 0.84 | 1319 |
| 500 | 37 | 65 | 0.93 | 1638 |
| 600 | 61 | 80 | 1.03 | 1972 |
| 750 | 61 | 80 | 1.14 | 2448 |
| 1000 | 61 | 80 | 1.29 | 3239 |
| The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. | ||||
Ampacity Data
Low Voltage Cables XHHW/XHHW-2, RHH/RHW-2, USE-2, PV, SIS, RW90
| Low Voltage Cables XHHW/XHHW-2, RHH/RHW-2, USE-2, PV, SIS, RW90 | ||
|---|---|---|
| Conductor Size AWG/kcmil |
Ampacity* | |
| 75 °C | 90 °C | |
| 18 | — | 14 |
| 16 | — | 18 |
| 14 | 20 | 25 |
| 12 | 25 | 30 |
| 10 | 35 | 40 |
| 8 | 50 | 55 |
| 6 | 65 | 75 |
| 4 | 85 | 95 |
| 3 | 100 | 115 |
| 2 | 115 | 130 |
| 1 | 130 | 145 |
| 1/0 | 150 | 170 |
| 2/0 | 175 | 195 |
| 3/0 | 200 | 225 |
| 4/0 | 230 | 260 |
| 250 | 255 | 290 |
| 300 | 285 | 320 |
| 350 | 310 | 350 |
| 400 | 335 | 380 |
| 500 | 380 | 430 |
| 600 | 420 | 475 |
| 700 | 460 | 520 |
| 750 | 475 | 535 |
| 800 | 490 | 555 |
| 900 | 520 | 585 |
| 1000 | 545 | 615 |
| 1250 | 590 | 665 |
| 1500 | 625 | 705 |
| 1750 | 650 | 735 |
| 2000 | 665 | 750 |
| NEC Table 310.15(B)(16) (formerly Table 310.16) Allowable Ampacities of Insulated Conductors Rated Up to and Including 2000 Volts, 60 °C Through 90 °C (140 °F Through 194 °F), Not More Than Three Current-Carrying Conductors in Raceway, Cable, or Earth (Directly Buried), Based on Ambient Temperature of 30 °C (86 °F). | ||
| Low Voltage Cables XHHW/XHHW-2, RHH/RHW-2, USE-2, PV, SIS, RW90 (cont.) | ||
|---|---|---|
| Conductor Size AWG/kcmil |
Ampacity* | |
| 75 °C | 90 °C | |
| 18 | — | 18 |
| 16 | — | 24 |
| 14 | 30 | 35 |
| 12 | 35 | 40 |
| 10 | 50 | 55 |
| 8 | 70 | 80 |
| 6 | 95 | 105 |
| 4 | 125 | 140 |
| 3 | 145 | 165 |
| 2 | 170 | 190 |
| 1 | 195 | 220 |
| 1/0 | 230 | 260 |
| 2/0 | 265 | 300 |
| 3/0 | 310 | 350 |
| 4/0 | 360 | 405 |
| 250 | 405 | 455 |
| 300 | 445 | 500 |
| 350 | 505 | 570 |
| 400 | 545 | 615 |
| 500 | 620 | 700 |
| 600 | 690 | 780 |
| 700 | 755 | 850 |
| 750 | 785 | 885 |
| 800 | 815 | 920 |
| 900 | 870 | 980 |
| 1000 | 935 | 1055 |
| 1250 | 1065 | 1200 |
| 1500 | 1175 | 1325 |
| 1750 | 1280 | 1445 |
| 2000 | 1385 | 1560 |
| NEC Table 310.15(B)(17) (formerly Table 310.17) Allowable Ampacities of SingleInsulated Conductors Rated Up to and Including 2000 Volts in Free Air, Based on Ambient Temperature of 30 °C (86 °F). | ||

XHHW-2
XLPE Insulation, 600V & 1000V – Copper
Used for general purpose wiring in circuits not exceeding 600 volts. May be used in wet or dry locations, installed in conduit, duct, or open air.
Physical Data
| XHHW/XHHW-2 600/1000 V | ||||
|---|---|---|---|---|
| Size AWG or kcmil |
Number of Strands |
Insulation Thickness |
Approximate Outside Diameter |
Approximate Net Weight |
| mil | in | lb/kft | ||
| 14 | 7 | 30 | 0.13 | 19 |
| 12 | 7 | 30 | 0.15 | 27 |
| 10 | 7 | 30 | 0.18 | 41 |
| 8 | 7 | 45 | 0.24 | 68 |
| 6 | 7 | 45 | 0.27 | 98 |
| 4 | 7 | 45 | 0.32 | 150 |
| 2 | 7 | 45 | 0.38 | 231 |
| 1 | 19 | 55 | 0.44 | 293 |
| 1/0 | 19 | 55 | 0.48 | 365 |
| 2/0 | 19 | 55 | 0.52 | 455 |
| 3/0 | 19 | 55 | 0.57 | 567 |
| 4/0 | 19 | 55 | 0.63 | 709 |
| 250 | 37 | 65 | 0.69 | 838 |
| 300 | 37 | 65 | 0.75 | 998 |
| 350 | 37 | 65 | 0.8 | 1159 |
| 400 | 37 | 65 | 0.84 | 1319 |
| 500 | 37 | 65 | 0.93 | 1638 |
| 600 | 61 | 80 | 1.03 | 1972 |
| 750 | 61 | 80 | 1.14 | 2448 |
| 1000 | 61 | 80 | 1.29 | 3239 |
| The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. | ||||
Ampacity Data
| Low Voltage Cables XHHW/XHHW-2, RHH/RHW-2, USE-2, PV, SIS, RW90 | ||
|---|---|---|
| Conductor Size AWG/kcmil |
Ampacity* | |
| 75 °C | 90 °C | |
| 18 | — | 14 |
| 16 | — | 18 |
| 14 | 20 | 25 |
| 12 | 25 | 30 |
| 10 | 35 | 40 |
| 8 | 50 | 55 |
| 6 | 65 | 75 |
| 4 | 85 | 95 |
| 3 | 100 | 115 |
| 2 | 115 | 130 |
| 1 | 130 | 145 |
| 1/0 | 150 | 170 |
| 2/0 | 175 | 195 |
| 3/0 | 200 | 225 |
| 4/0 | 230 | 260 |
| 250 | 255 | 290 |
| 300 | 285 | 320 |
| 350 | 310 | 350 |
| 400 | 335 | 380 |
| 500 | 380 | 430 |
| 600 | 420 | 475 |
| 700 | 460 | 520 |
| 750 | 475 | 535 |
| 800 | 490 | 555 |
| 900 | 520 | 585 |
| 1000 | 545 | 615 |
| 1250 | 590 | 665 |
| 1500 | 625 | 705 |
| 1750 | 650 | 735 |
| 2000 | 665 | 750 |
| NEC Table 310.15(B)(16) (formerly Table 310.16) Allowable Ampacities of Insulated Conductors Rated Up to and Including 2000 Volts, 60 °C Through 90 °C (140 °F Through 194 °F), Not More Than Three Current-Carrying Conductors in Raceway, Cable, or Earth (Directly Buried), Based on Ambient Temperature of 30 °C (86 °F). | ||
| Low Voltage Cables XHHW/XHHW-2, RHH/RHW-2, USE-2, PV, SIS, RW90 (cont.) | ||
|---|---|---|
| Conductor Size AWG/kcmil |
Ampacity* | |
| 75 °C | 90 °C | |
| 18 | — | 18 |
| 16 | — | 24 |
| 14 | 30 | 35 |
| 12 | 35 | 40 |
| 10 | 50 | 55 |
| 8 | 70 | 80 |
| 6 | 95 | 105 |
| 4 | 125 | 140 |
| 3 | 145 | 165 |
| 2 | 170 | 190 |
| 1 | 195 | 220 |
| 1/0 | 230 | 260 |
| 2/0 | 265 | 300 |
| 3/0 | 310 | 350 |
| 4/0 | 360 | 405 |
| 250 | 405 | 455 |
| 300 | 445 | 500 |
| 350 | 505 | 570 |
| 400 | 545 | 615 |
| 500 | 620 | 700 |
| 600 | 690 | 780 |
| 700 | 755 | 850 |
| 750 | 785 | 885 |
| 800 | 815 | 920 |
| 900 | 870 | 980 |
| 1000 | 935 | 1055 |
| 1250 | 1065 | 1200 |
| 1500 | 1175 | 1325 |
| 1750 | 1280 | 1445 |
| 2000 | 1385 | 1560 |
| NEC Table 310.15(B)(17) (formerly Table 310.17) Allowable Ampacities of SingleInsulated Conductors Rated Up to and Including 2000 Volts in Free Air, Based on Ambient Temperature of 30 °C (86 °F). | ||

XHHW-2 CT
XLPE Insulation, VW1, GRI & GRII, SR, 600V & 1000V – Copper
Used for general purpose wiring in circuits not exceeding 600 volts. May be used in wet or dry locations, installed in conduit, duct, or open air.
Physical Data
| XHHW/XHHW-2 600/1000 V | ||||
|---|---|---|---|---|
| Size AWG or kcmil |
Number of Strands |
Insulation Thickness |
Approximate Outside Diameter |
Approximate Net Weight |
| mil | in | lb/kft | ||
| 14 | 7 | 30 | 0.13 | 18 |
| 12 | 7 | 30 | 0.15 | 27 |
| 10 | 7 | 30 | 0.18 | 40 |
| 8 | 7 | 45 | 0.24 | 67 |
| 6 | 7 | 45 | 0.27 | 101 |
| 4 | 7 | 45 | 0.32 | 153 |
| 2 | 7 | 45 | 0.38 | 236 |
| 1 | 19 | 55 | 0.44 | 298 |
| 1/0 | 19 | 55 | 0.48 | 369 |
| 2/0 | 19 | 55 | 0.53 | 459 |
| 3/0 | 19 | 55 | 0.58 | 572 |
| 4/0 | 19 | 55 | 0.63 | 713 |
| 250 | 37 | 65 | 0.70 | 849 |
| 300 | 37 | 65 | 0.75 | 1010 |
| 350 | 37 | 65 | 0.80 | 1171 |
| 400 | 37 | 65 | 0.85 | 1331 |
| 500 | 37 | 65 | 0.93 | 1651 |
| 600 | 61 | 80 | 1.04 | 1997 |
| 750 | 61 | 80 | 1.14 | 2477 |
| 1000 | 61 | 80 | 1.29 | 3272 |
| The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. | ||||
Ampacity Data
| Low Voltage Cables XHHW/XHHW-2, RHH/RHW-2, USE-2, PV, SIS, RW90 | ||
|---|---|---|
| Conductor Size AWG/kcmil |
Ampacity* | |
| 75 °C | 90 °C | |
| 18 | — | 14 |
| 16 | — | 18 |
| 14 | 20 | 25 |
| 12 | 25 | 30 |
| 10 | 35 | 40 |
| 8 | 50 | 55 |
| 6 | 65 | 75 |
| 4 | 85 | 95 |
| 3 | 100 | 115 |
| 2 | 115 | 130 |
| 1 | 130 | 145 |
| 1/0 | 150 | 170 |
| 2/0 | 175 | 195 |
| 3/0 | 200 | 225 |
| 4/0 | 230 | 260 |
| 250 | 255 | 290 |
| 300 | 285 | 320 |
| 350 | 310 | 350 |
| 400 | 335 | 380 |
| 500 | 380 | 430 |
| 600 | 420 | 475 |
| 700 | 460 | 520 |
| 750 | 475 | 535 |
| 800 | 490 | 555 |
| 900 | 520 | 585 |
| 1000 | 545 | 615 |
| 1250 | 590 | 665 |
| 1500 | 625 | 705 |
| 1750 | 650 | 735 |
| 2000 | 665 | 750 |
| NEC Table 310.15(B)(16) (formerly Table 310.16) Allowable Ampacities of Insulated Conductors Rated Up to and Including 2000 Volts, 60 °C Through 90 °C (140 °F Through 194 °F), Not More Than Three Current-Carrying Conductors in Raceway, Cable, or Earth (Directly Buried), Based on Ambient Temperature of 30 °C (86 °F). | ||
| Low Voltage Cables XHHW/XHHW-2, RHH/RHW-2, USE-2, PV, SIS, RW90 (cont.) | ||
|---|---|---|
| Conductor Size AWG/kcmil |
Ampacity* | |
| 75 °C | 90 °C | |
| 18 | — | 18 |
| 16 | — | 24 |
| 14 | 30 | 35 |
| 12 | 35 | 40 |
| 10 | 50 | 55 |
| 8 | 70 | 80 |
| 6 | 95 | 105 |
| 4 | 125 | 140 |
| 3 | 145 | 165 |
| 2 | 170 | 190 |
| 1 | 195 | 220 |
| 1/0 | 230 | 260 |
| 2/0 | 265 | 300 |
| 3/0 | 310 | 350 |
| 4/0 | 360 | 405 |
| 250 | 405 | 455 |
| 300 | 445 | 500 |
| 350 | 505 | 570 |
| 400 | 545 | 615 |
| 500 | 620 | 700 |
| 600 | 690 | 780 |
| 700 | 755 | 850 |
| 750 | 785 | 885 |
| 800 | 815 | 920 |
| 900 | 870 | 980 |
| 1000 | 935 | 1055 |
| 1250 | 1065 | 1200 |
| 1500 | 1175 | 1325 |
| 1750 | 1280 | 1445 |
| 2000 | 1385 | 1560 |
| NEC Table 310.15(B)(17) (formerly Table 310.17) Allowable Ampacities of SingleInsulated Conductors Rated Up to and Including 2000 Volts in Free Air, Based on Ambient Temperature of 30 °C (86 °F). | ||

USE-2
XLPE Insulation, 600V – Copper
Used in underground installations, and as a service entrance cable. May be used in wet or dry locations, installed in conduit, duct, open air and direct burial.
Physical Data
| USE/USE-2 600 V | ||||
|---|---|---|---|---|
| Size AWG or kcmil |
Number of Strands |
Insulation Thickness |
Approximate Outside Diameter |
Approximate Net Weight |
| mil | in | lb/kft | ||
| 14 | 7 | 45 | 0.16 | 22 |
| 12 | 7 | 45 | 0.18 | 31 |
| 10 | 7 | 45 | 0.2 | 45 |
| 8 | 7 | 60 | 0.25 | 73 |
| 6 | 7 | 60 | 0.31 | 102 |
| 4 | 7 | 60 | 0.35 | 154 |
| 3 | 7 | 60 | 0.37 | 190 |
| 2 | 7 | 60 | 0.41 | 236 |
| 1 | 19 | 80 | 0.49 | 305 |
| 1/0 | 19 | 80 | 0.53 | 377 |
| 2/0 | 19 | 80 | 0.57 | 468 |
| 3/0 | 19 | 80 | 0.62 | 582 |
| 4/0 | 19 | 80 | 0.68 | 725 |
| 250 | 37 | 95 | 0.76 | 860 |
| 300 | 37 | 95 | 0.81 | 1022 |
| 350 | 37 | 95 | 0.86 | 1184 |
| 400 | 37 | 95 | 0.91 | 1345 |
| 500 | 37 | 95 | 0.99 | 1666 |
| 600 | 61 | 110 | 1.1 | 2002 |
| 750 | 61 | 110 | 1.2 | 2481 |
| The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. | ||||
Ampacity Data
| Low Voltage Cables XHHW/XHHW-2, RHH/RHW-2, USE-2, PV, SIS, RW90 | ||
|---|---|---|
| Conductor Size AWG/kcmil |
Ampacity* | |
| 75 °C | 90 °C | |
| 18 | — | 14 |
| 16 | — | 18 |
| 14 | 20 | 25 |
| 12 | 25 | 30 |
| 10 | 35 | 40 |
| 8 | 50 | 55 |
| 6 | 65 | 75 |
| 4 | 85 | 95 |
| 3 | 100 | 115 |
| 2 | 115 | 130 |
| 1 | 130 | 145 |
| 1/0 | 150 | 170 |
| 2/0 | 175 | 195 |
| 3/0 | 200 | 225 |
| 4/0 | 230 | 260 |
| 250 | 255 | 290 |
| 300 | 285 | 320 |
| 350 | 310 | 350 |
| 400 | 335 | 380 |
| 500 | 380 | 430 |
| 600 | 420 | 475 |
| 700 | 460 | 520 |
| 750 | 475 | 535 |
| 800 | 490 | 555 |
| 900 | 520 | 585 |
| 1000 | 545 | 615 |
| 1250 | 590 | 665 |
| 1500 | 625 | 705 |
| 1750 | 650 | 735 |
| 2000 | 665 | 750 |
| NEC Table 310.15(B)(16) (formerly Table 310.16) Allowable Ampacities of Insulated Conductors Rated Up to and Including 2000 Volts, 60 °C Through 90 °C (140 °F Through 194 °F), Not More Than Three Current-Carrying Conductors in Raceway, Cable, or Earth (Directly Buried), Based on Ambient Temperature of 30 °C (86 °F). | ||
| Low Voltage Cables XHHW/XHHW-2, RHH/RHW-2, USE-2, PV, SIS, RW90 (cont.) | ||
|---|---|---|
| Conductor Size AWG/kcmil |
Ampacity* | |
| 75 °C | 90 °C | |
| 18 | — | 18 |
| 16 | — | 24 |
| 14 | 30 | 35 |
| 12 | 35 | 40 |
| 10 | 50 | 55 |
| 8 | 70 | 80 |
| 6 | 95 | 105 |
| 4 | 125 | 140 |
| 3 | 145 | 165 |
| 2 | 170 | 190 |
| 1 | 195 | 220 |
| 1/0 | 230 | 260 |
| 2/0 | 265 | 300 |
| 3/0 | 310 | 350 |
| 4/0 | 360 | 405 |
| 250 | 405 | 455 |
| 300 | 445 | 500 |
| 350 | 505 | 570 |
| 400 | 545 | 615 |
| 500 | 620 | 700 |
| 600 | 690 | 780 |
| 700 | 755 | 850 |
| 750 | 785 | 885 |
| 800 | 815 | 920 |
| 900 | 870 | 980 |
| 1000 | 935 | 1055 |
| 1250 | 1065 | 1200 |
| 1500 | 1175 | 1325 |
| 1750 | 1280 | 1445 |
| 2000 | 1385 | 1560 |
| NEC Table 310.15(B)(17) (formerly Table 310.17) Allowable Ampacities of SingleInsulated Conductors Rated Up to and Including 2000 Volts in Free Air, Based on Ambient Temperature of 30 °C (86 °F). | ||

RW90 & RW75
XLPE Insulation, 600-2000V – Copper
Used in general purpose wiring in circuits not exceeding 2000 volts. May be used in wet or dry locations, installed in raceway, duct and aerial installations. For exposed wiring in wet locations, or exposed to weather. For use in raceways, except cable trays, in wet locations. For use in ventilated and non-ventilated cable trays, in vaults and switch rooms.
Physical Data
| RW90/RW75 | ||||
|---|---|---|---|---|
| Size AWG or kcmil |
Number of Strands |
Insulation Thickness |
Approximate Outside Diameter |
Approximate Net Weight |
| mil | in | lb/kft | ||
| 600 volts | ||||
| 14 | 19 | 30 | 0.13 | 19 |
| 12 | 19 | 30 | 0.15 | 27 |
| 10 | 19 | 30 | 0.18 | 41 |
| 8 | 19 | 45 | 0.24 | 68 |
| 6 | 19 | 45 | 0.27 | 98 |
| 4 | 19 | 45 | 0.32 | 150 |
| 2 | 19 | 45 | 0.38 | 231 |
| 1 | 19 | 55 | 0.44 | 293 |
| 1/0 | 19 | 55 | 0.48 | 365 |
| 2/0 | 19 | 55 | 0.52 | 455 |
| 3/0 | 19 | 55 | 0.57 | 567 |
| 4/0 | 19 | 55 | 0.63 | 709 |
| 250 | 37 | 65 | 0.69 | 838 |
| 300 | 37 | 65 | 0.75 | 998 |
| 350 | 37 | 65 | 0.8 | 1159 |
| 400 | 37 | 65 | 0.84 | 1319 |
| 500 | 37 | 65 | 0.93 | 1638 |
| 600 | 37 | 65 | 1.03 | 1972 |
| 750 | 61 | 80 | 1.14 | 2448 |
| 1000 | 61 | 80 | 1.29 | 3239 |
| The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. | ||||
| RW90/RW75 (cont.) | ||||
|---|---|---|---|---|
| Size AWG or kcmil |
Number of Strands |
Insulation Thickness |
Approximate Outside Diameter |
Approximate Net Weight |
| mil | in | lb/kft | ||
| 1000 volts | ||||
| 14 | 7 | 45 | 0.17 | 23 |
| 12 | 7 | 45 | 0.18 | 32 |
| 10 | 7 | 45 | 0.21 | 46 |
| 8 | 7 | 45 | 0.24 | 68 |
| 6 | 7 | 60 | 0.31 | 104 |
| 4 | 7 | 60 | 0.35 | 157 |
| 2 | 7 | 60 | 0.41 | 239 |
| 1 | 19 | 80 | 0.5 | 309 |
| 1/0 | 19 | 80 | 0.54 | 381 |
| 2/0 | 19 | 80 | 0.58 | 473 |
| 3/0 | 19 | 80 | 0.63 | 585 |
| 4/0 | 19 | 80 | 0.69 | 728 |
| 250 | 37 | 90 | 0.75 | 863 |
| 300 | 37 | 90 | 0.81 | 1025 |
| 350 | 37 | 90 | 0.85 | 1187 |
| 400 | 37 | 90 | 0.9 | 1348 |
| 500 | 37 | 90 | 0.98 | 1669 |
| 600 | 61 | 90 | 1.06 | 1990 |
| 750 | 61 | 90 | 1.16 | 2468 |
| 1000 | 61 | 90 | 1.31 | 3262 |
| 2000 volts | ||||
| 14 | 7 | 60 | 0.2 | 28 |
| 12 | 7 | 60 | 0.22 | 38 |
| 10 | 7 | 60 | 0.24 | 53 |
| 8 | 7 | 70 | 0.29 | 80 |
| 6 | 7 | 70 | 0.33 | 109 |
| 4 | 7 | 70 | 0.37 | 163 |
| 2 | 7 | 70 | 0.43 | 246 |
| 1 | 19 | 90 | 0.52 | 317 |
| 1/0 | 19 | 90 | 0.56 | 390 |
| 2/0 | 19 | 90 | 0.6 | 482 |
| 3/0 | 19 | 90 | 0.65 | 596 |
| 4/0 | 37 | 90 | 0.71 | 740 |
| 250 | 37 | 105 | 0.78 | 882 |
| 300 | 37 | 105 | 0.84 | 1045 |
| 350 | 37 | 105 | 0.89 | 1209 |
| 400 | 37 | 105 | 0.93 | 1370 |
| 500 | 37 | 105 | 1.01 | 1694 |
| 600 | 61 | 120 | 1.12 | 2041 |
| 750 | 61 | 120 | 1.23 | 2524 |
| 1000 | 61 | 120 | 1.37 | 3325 |
| The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. | ||||
Ampacity Data
| Low Voltage Cables XHHW/XHHW-2, RHH/RHW-2, USE-2, PV, SIS, RW90 | ||
|---|---|---|
| Conductor Size AWG/kcmil |
Ampacity* | |
| 75 °C | 90 °C | |
| 18 | — | 14 |
| 16 | — | 18 |
| 14 | 20 | 25 |
| 12 | 25 | 30 |
| 10 | 35 | 40 |
| 8 | 50 | 55 |
| 6 | 65 | 75 |
| 4 | 85 | 95 |
| 3 | 100 | 115 |
| 2 | 115 | 130 |
| 1 | 130 | 145 |
| 1/0 | 150 | 170 |
| 2/0 | 175 | 195 |
| 3/0 | 200 | 225 |
| 4/0 | 230 | 260 |
| 250 | 255 | 290 |
| 300 | 285 | 320 |
| 350 | 310 | 350 |
| 400 | 335 | 380 |
| 500 | 380 | 430 |
| 600 | 420 | 475 |
| 700 | 460 | 520 |
| 750 | 475 | 535 |
| 800 | 490 | 555 |
| 900 | 520 | 585 |
| 1000 | 545 | 615 |
| 1250 | 590 | 665 |
| 1500 | 625 | 705 |
| 1750 | 650 | 735 |
| 2000 | 665 | 750 |
| NEC Table 310.15(B)(16) (formerly Table 310.16) Allowable Ampacities of Insulated Conductors Rated Up to and Including 2000 Volts, 60 °C Through 90 °C (140 °F Through 194 °F), Not More Than Three Current-Carrying Conductors in Raceway, Cable, or Earth (Directly Buried), Based on Ambient Temperature of 30 °C (86 °F). | ||
| Low Voltage Cables XHHW/XHHW-2, RHH/RHW-2, USE-2, PV, SIS, RW90 (cont.) | ||
|---|---|---|
| Conductor Size AWG/kcmil |
Ampacity* | |
| 75 °C | 90 °C | |
| 18 | — | 18 |
| 16 | — | 24 |
| 14 | 30 | 35 |
| 12 | 35 | 40 |
| 10 | 50 | 55 |
| 8 | 70 | 80 |
| 6 | 95 | 105 |
| 4 | 125 | 140 |
| 3 | 145 | 165 |
| 2 | 170 | 190 |
| 1 | 195 | 220 |
| 1/0 | 230 | 260 |
| 2/0 | 265 | 300 |
| 3/0 | 310 | 350 |
| 4/0 | 360 | 405 |
| 250 | 405 | 455 |
| 300 | 445 | 500 |
| 350 | 505 | 570 |
| 400 | 545 | 615 |
| 500 | 620 | 700 |
| 600 | 690 | 780 |
| 700 | 755 | 850 |
| 750 | 785 | 885 |
| 800 | 815 | 920 |
| 900 | 870 | 980 |
| 1000 | 935 | 1055 |
| 1250 | 1065 | 1200 |
| 1500 | 1175 | 1325 |
| 1750 | 1280 | 1445 |
| 2000 | 1385 | 1560 |
| NEC Table 310.15(B)(17) (formerly Table 310.17) Allowable Ampacities of SingleInsulated Conductors Rated Up to and Including 2000 Volts in Free Air, Based on Ambient Temperature of 30 °C (86 °F). | ||

RWU90 & RWU75
XLPE Insulation, 1000V – Copper
Used in general purpose wiring in circuits not exceeding 1000 volts. May be used in wet or dry locations, installed in raceway, duct and aerial installations. For exposed wiring in wet locations, or exposed to weather. For use in raceways, except cable trays, in wet locations. For use in ventilated and non-ventilated cable trays in vaults and switch rooms.
Physical Data
| RWU90/RWU75 1000 V | ||||
|---|---|---|---|---|
| Size AWG or kcmil |
Number of Strands |
Insulation Thickness |
Approximate Outside Diameter |
Approximate Net Weight |
| mil | in | lb/kft | ||
| 6 | 7 | 80 | 0.35 | 111 |
| 4 | 7 | 80 | 0.39 | 164 |
| 2 | 7 | 80 | 0.45 | 248 |
| 1 | 19 | 95 | 0.53 | 317 |
| 1/0 | 19 | 95 | 0.57 | 391 |
| 2/0 | 19 | 95 | 0.61 | 483 |
| 3/0 | 19 | 95 | 0.66 | 598 |
| 4/0 | 19 | 95 | 0.72 | 742 |
| 250 | 37 | 110 | 0.79 | 879 |
| 300 | 37 | 110 | 0.85 | 1042 |
| 350 | 37 | 110 | 0.9 | 1206 |
| 400 | 37 | 110 | 0.94 | 1368 |
| 500 | 37 | 110 | 1.03 | 1691 |
| 600 | 61 | 125 | 1.13 | 2029 |
| 750 | 61 | 125 | 1.24 | 2511 |
| 1000 | 61 | 125 | 1.38 | 3310 |
| The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. | ||||
Ampacity Data
| Low Voltage Cables XHHW/XHHW-2, RHH/RHW-2, USE-2, PV, SIS, RW90 | ||
|---|---|---|
| Conductor Size AWG/kcmil |
Ampacity* | |
| 75 °C | 90 °C | |
| 18 | — | 14 |
| 16 | — | 18 |
| 14 | 20 | 25 |
| 12 | 25 | 30 |
| 10 | 35 | 40 |
| 8 | 50 | 55 |
| 6 | 65 | 75 |
| 4 | 85 | 95 |
| 3 | 100 | 115 |
| 2 | 115 | 130 |
| 1 | 130 | 145 |
| 1/0 | 150 | 170 |
| 2/0 | 175 | 195 |
| 3/0 | 200 | 225 |
| 4/0 | 230 | 260 |
| 250 | 255 | 290 |
| 300 | 285 | 320 |
| 350 | 310 | 350 |
| 400 | 335 | 380 |
| 500 | 380 | 430 |
| 600 | 420 | 475 |
| 700 | 460 | 520 |
| 750 | 475 | 535 |
| 800 | 490 | 555 |
| 900 | 520 | 585 |
| 1000 | 545 | 615 |
| 1250 | 590 | 665 |
| 1500 | 625 | 705 |
| 1750 | 650 | 735 |
| 2000 | 665 | 750 |
| NEC Table 310.15(B)(16) (formerly Table 310.16) Allowable Ampacities of Insulated Conductors Rated Up to and Including 2000 Volts, 60 °C Through 90 °C (140 °F Through 194 °F), Not More Than Three Current-Carrying Conductors in Raceway, Cable, or Earth (Directly Buried), Based on Ambient Temperature of 30 °C (86 °F). | ||
| Low Voltage Cables XHHW/XHHW-2, RHH/RHW-2, USE-2, PV, SIS, RW90 (cont.) | ||
|---|---|---|
| Conductor Size AWG/kcmil |
Ampacity* | |
| 75 °C | 90 °C | |
| 18 | — | 18 |
| 16 | — | 24 |
| 14 | 30 | 35 |
| 12 | 35 | 40 |
| 10 | 50 | 55 |
| 8 | 70 | 80 |
| 6 | 95 | 105 |
| 4 | 125 | 140 |
| 3 | 145 | 165 |
| 2 | 170 | 190 |
| 1 | 195 | 220 |
| 1/0 | 230 | 260 |
| 2/0 | 265 | 300 |
| 3/0 | 310 | 350 |
| 4/0 | 360 | 405 |
| 250 | 405 | 455 |
| 300 | 445 | 500 |
| 350 | 505 | 570 |
| 400 | 545 | 615 |
| 500 | 620 | 700 |
| 600 | 690 | 780 |
| 700 | 755 | 850 |
| 750 | 785 | 885 |
| 800 | 815 | 920 |
| 900 | 870 | 980 |
| 1000 | 935 | 1055 |
| 1250 | 1065 | 1200 |
| 1500 | 1175 | 1325 |
| 1750 | 1280 | 1445 |
| 2000 | 1385 | 1560 |
| NEC Table 310.15(B)(17) (formerly Table 310.17) Allowable Ampacities of SingleInsulated Conductors Rated Up to and Including 2000 Volts in Free Air, Based on Ambient Temperature of 30 °C (86 °F). | ||

RHH/RHW-2/USE-2
XLPE Insulation, 600V – Copper
Used in general purpose wiring in circuits not exceeding 600 volts. May be used in wet or dry locations, installed in conduit, duct or open air or direct burial.
Physical Data
| RHH/RHW-2, USE-2 600 V | ||||
|---|---|---|---|---|
| Size AWG or kcmil |
Number of Strands |
Insulation Thickness |
Approximate Outside Diameter |
Approximate Net Weight |
| mil | in | lb/kft | ||
| 14 | 7 | 45 | 0.17 | 23 |
| 12 | 7 | 45 | 0.18 | 32 |
| 10 | 7 | 45 | 0.21 | 46 |
| 8 | 7 | 60 | 0.27 | 75 |
| 6 | 7 | 60 | 0.31 | 104 |
| 4 | 7 | 60 | 0.35 | 157 |
| 2 | 7 | 60 | 0.41 | 240 |
| 1 | 19 | 80 | 0.49 | 310 |
| 1/0 | 19 | 80 | 0.53 | 383 |
| 2/0 | 19 | 80 | 0.57 | 475 |
| 3/0 | 19 | 80 | 0.62 | 590 |
| 4/0 | 19 | 80 | 0.68 | 733 |
| 250 | 37 | 95 | 0.76 | 871 |
| 300 | 37 | 95 | 0.81 | 1033 |
| 350 | 37 | 95 | 0.86 | 1196 |
| 400 | 37 | 95 | 0.91 | 1358 |
| 500 | 37 | 95 | 0.99 | 1681 |
| 600 | 61 | 110 | 1.1 | 2019 |
| 750 | 61 | 110 | 1.2 | 2500 |
| 1000 | 61 | 110 | 1.35 | 3298 |
| The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. | ||||
Ampacity Data
| Low Voltage Cables XHHW/XHHW-2, RHH/RHW-2, USE-2, PV, SIS, RW90 | ||
|---|---|---|
| Conductor Size AWG/kcmil |
Ampacity* | |
| 75 °C | 90 °C | |
| 18 | — | 14 |
| 16 | — | 18 |
| 14 | 20 | 25 |
| 12 | 25 | 30 |
| 10 | 35 | 40 |
| 8 | 50 | 55 |
| 6 | 65 | 75 |
| 4 | 85 | 95 |
| 3 | 100 | 115 |
| 2 | 115 | 130 |
| 1 | 130 | 145 |
| 1/0 | 150 | 170 |
| 2/0 | 175 | 195 |
| 3/0 | 200 | 225 |
| 4/0 | 230 | 260 |
| 250 | 255 | 290 |
| 300 | 285 | 320 |
| 350 | 310 | 350 |
| 400 | 335 | 380 |
| 500 | 380 | 430 |
| 600 | 420 | 475 |
| 700 | 460 | 520 |
| 750 | 475 | 535 |
| 800 | 490 | 555 |
| 900 | 520 | 585 |
| 1000 | 545 | 615 |
| 1250 | 590 | 665 |
| 1500 | 625 | 705 |
| 1750 | 650 | 735 |
| 2000 | 665 | 750 |
| NEC Table 310.15(B)(16) (formerly Table 310.16) Allowable Ampacities of Insulated Conductors Rated Up to and Including 2000 Volts, 60 °C Through 90 °C (140 °F Through 194 °F), Not More Than Three Current-Carrying Conductors in Raceway, Cable, or Earth (Directly Buried), Based on Ambient Temperature of 30 °C (86 °F). | ||
| Low Voltage Cables XHHW/XHHW-2, RHH/RHW-2, USE-2, PV, SIS, RW90 (cont.) | ||
|---|---|---|
| Conductor Size AWG/kcmil |
Ampacity* | |
| 75 °C | 90 °C | |
| 18 | — | 18 |
| 16 | — | 24 |
| 14 | 30 | 35 |
| 12 | 35 | 40 |
| 10 | 50 | 55 |
| 8 | 70 | 80 |
| 6 | 95 | 105 |
| 4 | 125 | 140 |
| 3 | 145 | 165 |
| 2 | 170 | 190 |
| 1 | 195 | 220 |
| 1/0 | 230 | 260 |
| 2/0 | 265 | 300 |
| 3/0 | 310 | 350 |
| 4/0 | 360 | 405 |
| 250 | 405 | 455 |
| 300 | 445 | 500 |
| 350 | 505 | 570 |
| 400 | 545 | 615 |
| 500 | 620 | 700 |
| 600 | 690 | 780 |
| 700 | 755 | 850 |
| 750 | 785 | 885 |
| 800 | 815 | 920 |
| 900 | 870 | 980 |
| 1000 | 935 | 1055 |
| 1250 | 1065 | 1200 |
| 1500 | 1175 | 1325 |
| 1750 | 1280 | 1445 |
| 2000 | 1385 | 1560 |
| NEC Table 310.15(B)(17) (formerly Table 310.17) Allowable Ampacities of SingleInsulated Conductors Rated Up to and Including 2000 Volts in Free Air, Based on Ambient Temperature of 30 °C (86 °F). | ||

RHH/RHW-2/USE-2
EPR Insulation, XLPO Jacket, LSOH, 600V – Copper
For power, lighting, signal and control circuits installed in wet or dry locations. May be installed in conduit, duct, tray and open air where low smoke and halogen free materials are desired.
Physical Data
| RHH/RHW-2 /USE-2 600 V | |||||
|---|---|---|---|---|---|
| Insulation Thickness | |||||
| Size AWG or kcmil |
Number of Strands |
Inner Layer | Outer Layer | Approximate Outside Diameter |
Approximate Net Weight |
| mil | mil | in | lb/kft | ||
| 6 | 7 | 45 | 30 | 0.34 | 123 |
| 4 | 7 | 45 | 30 | 0.38 | 179 |
| 2 | 7 | 45 | 30 | 0.44 | 266 |
| 1 | 19 | 55 | 45 | 0.54 | 346 |
| 1/0 | 19 | 55 | 45 | 0.58 | 424 |
| 2/0 | 19 | 55 | 45 | 0.62 | 518 |
| 3/0 | 19 | 55 | 45 | 0.67 | 636 |
| 4/0 | 19 | 55 | 45 | 0.73 | 783 |
| 250 | 37 | 65 | 65 | 0.84 | 961 |
| 300 | 37 | 65 | 65 | 0.89 | 1109 |
| 350 | 37 | 65 | 65 | 0.94 | 1298 |
| 400 | 37 | 65 | 65 | 0.99 | 1460 |
| 500 | 37 | 65 | 65 | 1.07 | 1794 |
| 600 | 61 | 80 | 65 | 1.18 | 2155 |
| 750 | 61 | 80 | 65 | 1.28 | 2653 |
| 1000 | 61 | 80 | 65 | 1.43 | 3464 |
| The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. | |||||
Ampacity Data
| Low Voltage Cables XHHW/XHHW-2, RHH/RHW-2, USE-2, PV, SIS, RW90 | ||
|---|---|---|
| Conductor Size AWG/kcmil |
Ampacity* | |
| 75 °C | 90 °C | |
| 18 | — | 14 |
| 16 | — | 18 |
| 14 | 20 | 25 |
| 12 | 25 | 30 |
| 10 | 35 | 40 |
| 8 | 50 | 55 |
| 6 | 65 | 75 |
| 4 | 85 | 95 |
| 3 | 100 | 115 |
| 2 | 115 | 130 |
| 1 | 130 | 145 |
| 1/0 | 150 | 170 |
| 2/0 | 175 | 195 |
| 3/0 | 200 | 225 |
| 4/0 | 230 | 260 |
| 250 | 255 | 290 |
| 300 | 285 | 320 |
| 350 | 310 | 350 |
| 400 | 335 | 380 |
| 500 | 380 | 430 |
| 600 | 420 | 475 |
| 700 | 460 | 520 |
| 750 | 475 | 535 |
| 800 | 490 | 555 |
| 900 | 520 | 585 |
| 1000 | 545 | 615 |
| 1250 | 590 | 665 |
| 1500 | 625 | 705 |
| 1750 | 650 | 735 |
| 2000 | 665 | 750 |
| NEC Table 310.15(B)(16) (formerly Table 310.16) Allowable Ampacities of Insulated Conductors Rated Up to and Including 2000 Volts, 60 °C Through 90 °C (140 °F Through 194 °F), Not More Than Three Current-Carrying Conductors in Raceway, Cable, or Earth (Directly Buried), Based on Ambient Temperature of 30 °C (86 °F). | ||
| Low Voltage Cables XHHW/XHHW-2, RHH/RHW-2, USE-2, PV, SIS, RW90 (cont.) | ||
|---|---|---|
| Conductor Size AWG/kcmil |
Ampacity* | |
| 75 °C | 90 °C | |
| 18 | — | 18 |
| 16 | — | 24 |
| 14 | 30 | 35 |
| 12 | 35 | 40 |
| 10 | 50 | 55 |
| 8 | 70 | 80 |
| 6 | 95 | 105 |
| 4 | 125 | 140 |
| 3 | 145 | 165 |
| 2 | 170 | 190 |
| 1 | 195 | 220 |
| 1/0 | 230 | 260 |
| 2/0 | 265 | 300 |
| 3/0 | 310 | 350 |
| 4/0 | 360 | 405 |
| 250 | 405 | 455 |
| 300 | 445 | 500 |
| 350 | 505 | 570 |
| 400 | 545 | 615 |
| 500 | 620 | 700 |
| 600 | 690 | 780 |
| 700 | 755 | 850 |
| 750 | 785 | 885 |
| 800 | 815 | 920 |
| 900 | 870 | 980 |
| 1000 | 935 | 1055 |
| 1250 | 1065 | 1200 |
| 1500 | 1175 | 1325 |
| 1750 | 1280 | 1445 |
| 2000 | 1385 | 1560 |
| NEC Table 310.15(B)(17) (formerly Table 310.17) Allowable Ampacities of SingleInsulated Conductors Rated Up to and Including 2000 Volts in Free Air, Based on Ambient Temperature of 30 °C (86 °F). | ||

RHH/RHW-2
XLPE Insulation, 2000V – Copper
Used for general purpose wiring in circuits not exceeding 2000 volts.
May be used in wet or dry locations, installed in conduit, duct or open air.
Physical Data
| RHH/RHW-2, 2000 V | ||||
|---|---|---|---|---|
| Size AWG or kcmil |
Number of Strands |
Insulation Thickness |
Approximate Outside Diameter |
Approximate Net Weight |
| mil | in | lb/kft | ||
| 14 | 7 | 60 | 0.20 | 28 |
| 12 | 7 | 60 | 0.22 | 38 |
| 10 | 7 | 60 | 0.24 | 53 |
| 8 | 7 | 70 | 0.29 | 80 |
| 6 | 7 | 70 | 0.33 | 109 |
| 4 | 7 | 70 | 0.37 | 163 |
| 2 | 7 | 70 | 0.43 | 246 |
| 1 | 19 | 90 | 0.52 | 317 |
| 1/0 | 19 | 90 | 0.56 | 390 |
| 2/0 | 19 | 90 | 0.60 | 482 |
| 3/0 | 19 | 90 | 0.65 | 596 |
| 4/0 | 19 | 90 | 0.71 | 740 |
| 250 | 37 | 105 | 0.78 | 882 |
| 300 | 37 | 105 | 0.84 | 1045 |
| 350 | 37 | 105 | 0.89 | 1209 |
| 400 | 37 | 105 | 0.93 | 1370 |
| 500 | 37 | 105 | 1.01 | 1694 |
| 600 | 61 | 120 | 1.12 | 2041 |
| 750 | 61 | 120 | 1.23 | 2524 |
| 1000 | 61 | 120 | 1.37 | 3325 |
| The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. | ||||
Ampacity Data
| Low Voltage Cables XHHW/XHHW-2, RHH/RHW-2, USE-2, PV, SIS, RW90 | ||
|---|---|---|
| Conductor Size AWG/kcmil |
Ampacity* | |
| 75 °C | 90 °C | |
| 18 | — | 14 |
| 16 | — | 18 |
| 14 | 20 | 25 |
| 12 | 25 | 30 |
| 10 | 35 | 40 |
| 8 | 50 | 55 |
| 6 | 65 | 75 |
| 4 | 85 | 95 |
| 3 | 100 | 115 |
| 2 | 115 | 130 |
| 1 | 130 | 145 |
| 1/0 | 150 | 170 |
| 2/0 | 175 | 195 |
| 3/0 | 200 | 225 |
| 4/0 | 230 | 260 |
| 250 | 255 | 290 |
| 300 | 285 | 320 |
| 350 | 310 | 350 |
| 400 | 335 | 380 |
| 500 | 380 | 430 |
| 600 | 420 | 475 |
| 700 | 460 | 520 |
| 750 | 475 | 535 |
| 800 | 490 | 555 |
| 900 | 520 | 585 |
| 1000 | 545 | 615 |
| 1250 | 590 | 665 |
| 1500 | 625 | 705 |
| 1750 | 650 | 735 |
| 2000 | 665 | 750 |
| NEC Table 310.15(B)(16) (formerly Table 310.16) Allowable Ampacities of Insulated Conductors Rated Up to and Including 2000 Volts, 60 °C Through 90 °C (140 °F Through 194 °F), Not More Than Three Current-Carrying Conductors in Raceway, Cable, or Earth (Directly Buried), Based on Ambient Temperature of 30 °C (86 °F). | ||
| Low Voltage Cables XHHW/XHHW-2, RHH/RHW-2, USE-2, PV, SIS, RW90 (cont.) | ||
|---|---|---|
| Conductor Size AWG/kcmil |
Ampacity* | |
| 75 °C | 90 °C | |
| 18 | — | 18 |
| 16 | — | 24 |
| 14 | 30 | 35 |
| 12 | 35 | 40 |
| 10 | 50 | 55 |
| 8 | 70 | 80 |
| 6 | 95 | 105 |
| 4 | 125 | 140 |
| 3 | 145 | 165 |
| 2 | 170 | 190 |
| 1 | 195 | 220 |
| 1/0 | 230 | 260 |
| 2/0 | 265 | 300 |
| 3/0 | 310 | 350 |
| 4/0 | 360 | 405 |
| 250 | 405 | 455 |
| 300 | 445 | 500 |
| 350 | 505 | 570 |
| 400 | 545 | 615 |
| 500 | 620 | 700 |
| 600 | 690 | 780 |
| 700 | 755 | 850 |
| 750 | 785 | 885 |
| 800 | 815 | 920 |
| 900 | 870 | 980 |
| 1000 | 935 | 1055 |
| 1250 | 1065 | 1200 |
| 1500 | 1175 | 1325 |
| 1750 | 1280 | 1445 |
| 2000 | 1385 | 1560 |
| NEC Table 310.15(B)(17) (formerly Table 310.17) Allowable Ampacities of SingleInsulated Conductors Rated Up to and Including 2000 Volts in Free Air, Based on Ambient Temperature of 30 °C (86 °F). | ||

RHH/RHW-2
EPR Insulation, CPE Jacket, 600V or 2000V – Copper
For power, lighting, signal and control circuits installed in wet or dry locations. May be installed in conduit, duct, tray, and open air, and aerial installations. Suitable for use in industrial areas and utility systems where flame resistance is essential.
Physical Data
| RHH/RHW-2 600 & 2000 V | |||||
|---|---|---|---|---|---|
| Insulation Thickness | |||||
| Size AWG or kcmil |
Number of Strands |
Inner Layer | Outer Layer | Approximate Outside Diameter |
Approximate Net Weight |
| mil | mil | in | lb/kft | ||
| 14 | 7 | 30 | 15 | 0.17 | 24 |
| 12 | 7 | 30 | 15 | 0.18 | 33 |
| 10 | 7 | 30 | 15 | 0.21 | 47 |
| 8 | 7 | 45 | 15 | 0.27 | 77 |
| 6 | 7 | 45 | 30 | 0.34 | 122 |
| 4 | 7 | 45 | 30 | 0.38 | 178 |
| 2 | 7 | 45 | 30 | 0.44 | 265 |
| 1 | 19 | 55 | 45 | 0.54 | 347 |
| 1/0 | 19 | 55 | 45 | 0.58 | 423 |
| 2/0 | 19 | 55 | 45 | 0.62 | 517 |
| 3/0 | 19 | 55 | 45 | 0.67 | 634 |
| 4/0 | 19 | 55 | 45 | 0.73 | 781 |
| 250 | 37 | 65 | 65 | 0.84 | 959 |
| 300 | 37 | 65 | 65 | 0.89 | 1127 |
| 350 | 37 | 65 | 65 | 0.94 | 1295 |
| 400 | 37 | 65 | 65 | 0.99 | 1456 |
| 500 | 37 | 65 | 65 | 1.07 | 1792 |
| 600 | 61 | 80 | 65 | 1.18 | 2156 |
| 750 | 61 | 80 | 65 | 1.28 | 2649 |
| 1000 | 61 | 80 | 65 | 1.43 | 3465 |
| The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. | |||||
| RHH/RHW-2 600 & 2000 V | |||||
|---|---|---|---|---|---|
| Insulation Thickness | |||||
| Size AWG or kcmil |
Number of Strands |
Inner Layer | Outer Layer | Approximate Outside Diameter |
Approximate Net Weight |
| mil | mil | in | lb/kft | ||
| 14 | 7 | 45 | 15 | 0.2 | 29 |
| 12 | 7 | 45 | 15 | 0.22 | 39 |
| 10 | 7 | 45 | 15 | 0.24 | 54 |
| 8 | 7 | 55 | 30 | 0.32 | 92 |
| 6 | 7 | 55 | 30 | 0.36 | 129 |
| 4 | 7 | 55 | 30 | 0.41 | 186 |
| 2 | 7 | 55 | 30 | 0.46 | 274 |
| 1 | 19 | 65 | 45 | 0.56 | 358 |
| 1/0 | 19 | 65 | 45 | 0.6 | 434 |
| 2/0 | 19 | 65 | 45 | 0.64 | 529 |
| 3/0 | 19 | 65 | 45 | 0.69 | 648 |
| 4/0 | 19 | 65 | 45 | 0.75 | 795 |
| 250 | 37 | 75 | 65 | 0.86 | 975 |
| 300 | 37 | 75 | 65 | 0.91 | 1144 |
| 350 | 37 | 75 | 65 | 0.96 | 1314 |
| 400 | 37 | 75 | 65 | 1.01 | 1475 |
| 500 | 37 | 75 | 65 | 1.09 | 1813 |
| 600 | 61 | 90 | 65 | 1.2 | 2179 |
| 750 | 61 | 90 | 65 | 1.3 | 2674 |
| 1000 | 61 | 90 | 65 | 1.45 | 3493 |
| The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. | |||||

Type SOOW Flexible Cord
EPR Insulation, CPE Jacket, 600V – Copper
Portable cord for electrical power supply and general use in equipment exposed to severe environments. For use outdoors in wet or dry locations.

Type SOW Flexible Cord
EPR Insulation, CPE Jacket, 600V – Copper
Portable cord for electrical power supply and general use in equipment exposed to severe environments. For use outdoors in wet or dry locations.

Type STOW Flexible Cord
PVC Insulation, PVC Jacket, 600V – Copper
Portable cord for electrical power supply and general use in equipment exposed to severe environments. For use outdoors in wet or dry locations, pendants, connection of portable lamps, portable and mobile signs or appliances, wiring of cranes or hoists, and as permitted by NEC, article 400.7.

Photovoltaic Cable (PV)
XLPE Insulation, 1000V or 2000V – Copper
For interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Wiring Systems, Article 690, and other applicable parts of the National Electrical Code (NEC), NFPA 70.

Photovoltaic Cable (PV)
EPCV Insulation, 600V, 1000V or 2000V – Copper
For interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Wiring Systems, Article 690, and other applicable parts of the National Electrical Code (NEC), NFPA 70.

Photovoltaic Cable (PV)
EPR Insulation, CPE Jacket, 600V, 1000V or 2000V – Tinned Coated Copper
For interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Wiring Systems, Article 690, and other applicable parts of the National Electrical Code (NEC), NFPA 70.

Type P Drilling Rig & Marine Cable
Power/Distribution Cable, Single Conductor, XLPO Insulation, Heavy Duty Arctic Type CPE Jacket, Armored or Unarmored, or Armored & Sheathed, 600/1000V – Tinned Coated Copper
Designed for the installation and use in marine environments on offshore drilling rigs, aboard marine vessels, and on fixed and floating offshore facilities where harsh marine environments exist. Used for the distribution of power in circuits rated for 600 and 1000 volts. Typical applications include DC motor cables, generators, transformers, top drives, and other applications that may require a highly flexible rugged power cable.

Type P Drilling Rig & Marine Cable
Power/Distribution Cable, Multiconductor, XLPO Insulation, Heavy Duty Arctic Type CPE Jacket, Armored or Unarmored, or Armored & Sheathed, 600/1000V – Tinned Coated Copper
Designed for the installation and use in marine environments on offshore drilling rigs, aboard marine vessels, and on fixed and floating offshore facilities where harsh marine environments exist. Used for the distribution of power in circuits rated for 600 and 1000 volts or may be used in lighting, communication, and control. Typical applications include AC motor power, distribution panel feeders, transformer feeders, lighting panels, light fixtures, plugs/receptacles, and remote motor controls.

Type P Drilling Rig & Marine Cable
Control Cable, Multiconductor, XLPO Insulation, Heavy Duty Arctic Type CPE Jacket, Armored or Unarmored, or Armored & Sheathed, 600/1000V – Tinned Coated Copper
Designed for the installation and use in marine environments on offshore drilling rigs, aboard marine vessels, and on fixed and floating offshore facilities where harsh marine environments exist. Used in control, indicating, communication, electronic, and similar circuits where multiple conductor cables are required. Typical applications include driller’s console, fire and gas detection systems, bilge and ballast controls, and general alarm systems.

Type P Pairs, Individual Shield, Drilling Rig & Marine Cable
Signal & Instrumentation Cable, Multiconductor, XLPO Insulation, Heavy Duty Arctic Type CPE Jacket, Armored or Unarmored, or Armored & Sheathed, 600/1000V – Tinned Coated Copper
Designed for the installation and use in marine environments on offshore drilling rigs, aboard marine vessels, and on fixed and floating offshore facilities where harsh marine environments exist. Used in control, indicating, communication, electronic, and similar circuits where multiple conductor cables are required. Typical applications include tank level indicators, fire and gas protection systems, communication systems, CO₂ systems, and smoke detector systems.

Type P Pairs, Overall Shield, Drilling Rig & Marine Cable
Signal & Instrumentation Cable, Multiconductor, XLPO Insulation, Heavy Duty Arctic Type CPE Jacket, Armored or Unarmored, or Armored & Sheathed, 600/1000V – Tinned Coated Copper
Designed for the installation and use in marine environments on offshore drilling rigs, aboard marine vessels, and on fixed and floating offshore facilities where harsh marine environments exist. Used in control, indicating, communication, electronic, and similar circuits where multiple conductor cables are required. Typical applications include tank level indicators, fire and gas protection systems, communication systems, CO₂ systems, and smoke detector systems.

Type P Pairs, Individual & Overall Shield, Drilling Rig & Marine Cable
Signal & Instrumentation Cable, Multiconductor, XLPO Insulation, Heavy Duty Arctic Type CPE Jacket, Armored or Unarmored, or Armored & Sheathed, 600/1000V – Tinned Coated Copper
Designed for the installation and use in marine environments on offshore drilling rigs, aboard marine vessels, and on fixed and floating offshore facilities where harsh marine environments exist. Used in control, indicating, communication, electronic, and similar circuits where multiple conductor cables are required. Typical applications include tank level indicators, fire and gas protection systems, communication systems, CO₂ systems, and smoke detector systems.

Type P Triads, Individual Shield, Drilling Rig & Marine Cable
Signal & Instrumentation Cable, Multiconductor, XLPO Insulation, Heavy Duty Arctic Type CPE Jacket, Armored or Unarmored, or Armored & Sheathed, 600/1000V – Tinned Coated Copper
Designed for the installation and use in marine environments on offshore drilling rigs, aboard marine vessels, and on fixed and floating offshore facilities where harsh marine environments exist. Used in control, indicating, communication, electronic, and similar circuits where multiple conductor cables are required. Typical applications include tank level indicators, fire and gas protection systems, communication systems, CO₂ systems, and smoke detector systems.

Type P Triads, Overall Shield, Drilling Rig & Marine Cable
Signal & Instrumentation Cable, Multiconductor, XLPO Insulation, Heavy Duty Arctic Type CPE Jacket, Armored or Unarmored, or Armored & Sheathed, 600/1000V – Tinned Coated Copper
Designed for the installation and use in marine environments on offshore drilling rigs, aboard marine vessels, and on fixed and floating offshore facilities where harsh marine environments exist. Used in control, indicating, communication, electronic, and similar circuits where multiple conductor cables are required. Typical applications include tank level indicators, fire and gas protection systems, communication systems, CO₂ systems, and smoke detector systems.

Type P Triads, Individual & Overall Shield, Drilling Rig & Marine Cable
Signal & Instrumentation Cable, Multiconductor, XLPO Insulation, Heavy Duty Arctic Type CPE Jacket, Armored or Unarmored, or Armored & Sheathed, 600/1000V – Tinned Coated Copper
Designed for the installation and use in marine environments on offshore drilling rigs, aboard marine vessels, and on fixed and floating offshore facilities where harsh marine environments exist. Used in control, indicating, communication, electronic, and similar circuits where multiple conductor cables are required. Typical applications include tank level indicators, fire and gas protection systems, communication systems, CO₂ systems, and smoke detector systems.

Type T/N Drilling Rig & Marine Cable
Power/Distribution Cable, Single Conductor, PVC Insulation & Nylon Cover, PVC Jacket, Armored or Unarmored, or Armored & Sheathed, 600/1000V – Copper
Designed for the installation and use in marine environments on offshore drilling rigs, aboard marine vessels, and on fixed and floating offshore facilities. Used for the distribution of power in circuits or may be used in lighting, communication, and control in circuits rated for 600 or 1000 volts.

Type T/N Drilling Rig & Marine Cable
Power/Distribution Cable, Multiconductor, PVC Insulation & Nylon Cover, PVC Jacket, Armored or Unarmored, or Armored & Sheathed, 600/1000V – Copper
Designed for the installation and use in marine environments on offshore drilling rigs, aboard marine vessels, and on fixed and floating offshore facilities. Used for the distribution of power in circuits or may be used in lighting, communication, and control in circuits rated for 600 or 1000 volts.

Type T/N Drilling Rig & Marine Cable
Control Cable, Multiconductor, PVC Insulation & Nylon Cover, PVC Jacket, Armored or Unarmored, or Armored & Sheathed, 600/1000V – Copper
Designed for the installation and use in marine environments on offshore drilling rigs, aboard marine vessels, and on fixed and floating offshore facilities. Used in control, indicating, communication, electronic, and similar circuits where multiple conducter cables are required.

Type T/N Pairs, Individual Shield, Drilling Rig & Marine Cable
Signal & Instrumentation Cable, Multiconductor, PVC Insulation & Nylon Cover, PVC Jacket, Armored or Unarmored, or Armored & Sheathed, 600/1000V – Copper
Specifically designed for the installation and use in marine environments on offshore drilling rigs, aboard marine vessels, and on fixed and floating offshore facilities. Used for signal transmission where twisted groups of conductors are desired. Individual or overal group shielding is provided to prevent electrostatic and/or electromagnetic inerference in circuits rated for 300 volts.

Type T/N Pairs, Overall Shield, Drilling Rig & Marine Cable
Signal & Instrumentation Cable, Multiconductor, PVC Insulation & Nylon Cover, PVC Jacket, Armored or Unarmored, or Armored & Sheathed, 600/1000V – Copper
Specifically designed for the installation and use in marine environments on offshore drilling rigs, aboard marine vessels, and on fixed and floating offshore facilities. Used for signal transmission where twisted groups of conductors are desired. Individual or overal group shielding is provided to prevent electrostatic and/or electromagnetic inerference in circuits rated for 300 volts.

Type T/N Pairs, Individual & Overall Shield, Drilling Rig & Marine Cable
Signal & Instrumentation Cable, Multiconductor, PVC Insulation & Nylon Cover, PVC Jacket, Armored or Unarmored, or Armored & Sheathed, 600/1000V – Copper
Specifically designed for the installation and use in marine environments on offshore drilling rigs, aboard marine vessels, and on fixed and floating offshore facilities. Used for signal transmission where twisted groups of conductors are desired. Individual or overal group shielding is provided to prevent electrostatic and/or electromagnetic inerference in circuits rated for 300 volts.

Type LS Drilling Rig & Marine Cable
Power/Distribution Cable, Single Conductor, HF XLPE Insulation, SHF1 Jacket, Armored or Unarmored, or Armored & Sheathed, 600/1000V – Tinned Coated Copper
Used for the distribution of power in circuits rated for 600/1000 volts. Typical applications include D/C motor cables, generators, transformers, top drives, and other applications that may require a highly flexible rugged power cable.

Type LS Drilling Rig & Marine Cable
Power/Distribution Cable, Multiconductor, HF XLPE Insulation, SHF1 Jacket, Armored or Unarmored, or Armored & Sheathed, 600/1000V – Tinned Coated Copper
Used for the distribution of power in circuits rated for 600/1000 volts or may be used in lighting, communication, and control. Typical applications include A/C motor power, distribution pane feeders, transformer feeders, lighting panels, light fixtures, plugs/receptacles, and remote controls.

Type LS Drilling Rig & Marine Cable
Control Cable, Multiconductor, HF XLPE Insulation, SHF1 Jacket, Armored or Unarmored, or Armored & Sheathed, 600/1000V – Tinned Coated Copper
Used in control, indicating, communication, electronic, and similar circuits where multiple conductor cables are required. Typical applications include driller’s console, fire and gas detection systems, video camera systems, bilge and ballast controls, and general alarm systems.

Type LS Pairs, Individual Shield, Drilling Rig & Marine Cable
Signal & Instrumentation Cable, Multiconductor, HF XLPE Insulation, SHF1 Jacket, Armored or Unarmored, or Armored & Sheathed, 150/250V – Tinned Coated Copper
Used in signal transmission application where twisted groups of conductors are desired, also with overall or individual shielding to prevent electrostatic and/or electromagnetic interference. Typical applications include tank level indicators, fire and gas protection systems, communication systems, CO₂ systems, and smoke detector systems.

Type LS Pairs, Overall Shield, Drilling Rig & Marine Cable
Signal & Instrumentation Cable, Multiconductor, HF XLPE Insulation, SHF1 Jacket, Armored or Unarmored, or Armored & Sheathed, 150/250V – Tinned Coated Copper
Used in signal transmission application where twisted groups of conductors are desired, also with overall or individual shielding to prevent electrostatic and/or electromagnetic interference. Typical applications include tank level indicators, fire and gas protection systems, communication systems, CO₂ systems, and smoke detector systems.

Type LS Pairs, Individual & Overall Shield, Drilling Rig & Marine Cable
Signal & Instrumentation Cable, Multiconductor, HF XLPE Insulation, SHF1 Jacket, Armored or Unarmored, or Armored & Sheathed, 150/250V – Tinned Coated Copper
Used in signal transmission application where twisted groups of conductors are desired, also with overall or individual shielding to prevent electrostatic and/or electromagnetic interference. Typical applications include tank level indicators, fire and gas protection systems, communication systems, CO₂ systems, and smoke detector systems.

Type LS Triads, Individual Shield, Drilling Rig & Marine Cable
Signal & Instrumentation Cable, Multiconductor, HF XLPE Insulation, SHF1 Jacket, Armored or Unarmored, or Armored & Sheathed, 150/250V – Tinned Coated Copper
Used in signal transmission application where twisted groups of conductors are desired, also with overall or individual shielding to prevent electrostatic and/or electromagnetic interference. Typical applications include tank level indicators, fire and gas protection systems, communication systems, CO₂ systems, and smoke detector systems.

Type LS Triads, Overall Shield, Drilling Rig & Marine Cable
Signal & Instrumentation Cable, Multiconductor, HF XLPE Insulation, SHF1 Jacket, Armored or Unarmored, or Armored & Sheathed, 150/250V – Tinned Coated Copper
Used in signal transmission application where twisted groups of conductors are desired, also with overall or individual shielding to prevent electrostatic and/or electromagnetic interference. Typical applications include tank level indicators, fire and gas protection systems, communication systems, CO₂ systems, and smoke detector systems.

Type LS Triads, Individual & Overall Shield, Drilling Rig & Marine Cable
Signal & Instrumentation Cable, Multiconductor, HF XLPE Insulation, SHF1 Jacket, Armored or Unarmored, or Armored & Sheathed, 150/250V – Tinned Coated Copper
Used in signal transmission application where twisted groups of conductors are desired, also with overall or individual shielding to prevent electrostatic and/or electromagnetic interference. Typical applications include tank level indicators, fire and gas protection systems, communication systems, CO₂ systems, and smoke detector systems.

THHN/THWN-2
PVC Insulation, Nylon Jacket, 600V – Copper
Insulation and jacket is color coded for visual identification of conductors, and all colors are suitable for use in general purpose wiring in accordance with the requirements of NFPA 70 (NEC®). Approved for use at a maximum voltage of 600 volts and a maximum conductor temperature of 90°C in wet or dry locations and 75°C when exposed to gasoline and oil. Also rated AWM, for 105°C dry and 80°C in oil.

TFFN/TEWN Fixture Wire, Machine Tool Wire (MTW), Appliance Wiring Material (AWM)
PVC Insulation, Nylon Jacket, 600V – Copper
Used in fixture wire purpose wiring in accordance with the requirements of NFPA 70 (NEC®) article 402. Approved for use at a maximum voltage of 600 volts and a maximum conductor temperature of: 90°C (194°) in dry locations for TFFN; 90°C (194°F) in dry location or 60°C (140°F) in wet locations, or where oils or coolants are present for MTW; and 105°C (221°F) in dry locations for AWM. Permitted for installations of luminaries and in similar equipment where enclosed or protected and not subject to bending or twisting in use, or for connecting luminaries to the branch-circuits conductors supplying the luminaries.

Type NM-B, Non-Metallic Sheathed Cable
PVC Insulation & Nylon Cover, PVC Jacket, 600V – Copper
Jacket is color coded for visual identification of conductors. Used in residential wiring as branch circuits for outlets, switches, and other loads. For both exposed and concealed work in normally dry locations except as prohibited by NEC®. To be installed or fished in air voids in masonry block or tile walls, which are not subject to excessive wetness or dampness. The allowable ampacity shall not exceed that of a 60°C rated conductor, in accordance with NEC®.

Type UF-B, Underground Feeder Cable
PVC Insulation & Nylon Cover, PVC Jacket, Ground, 600V – Copper
For use underground, including direct burial in the earth. For wiring in wet, dry, or corrosive locations under the recognized wiring methods of the NEC®. Multiconductor can be installed as non-metallic sheathed cable. Where so installed, installation and conductor requirements shall comply with Parts II and III of Article 334. The allowable ampacity shall not exceed that of a 60°C rated conductor, in accordance with NEC®.

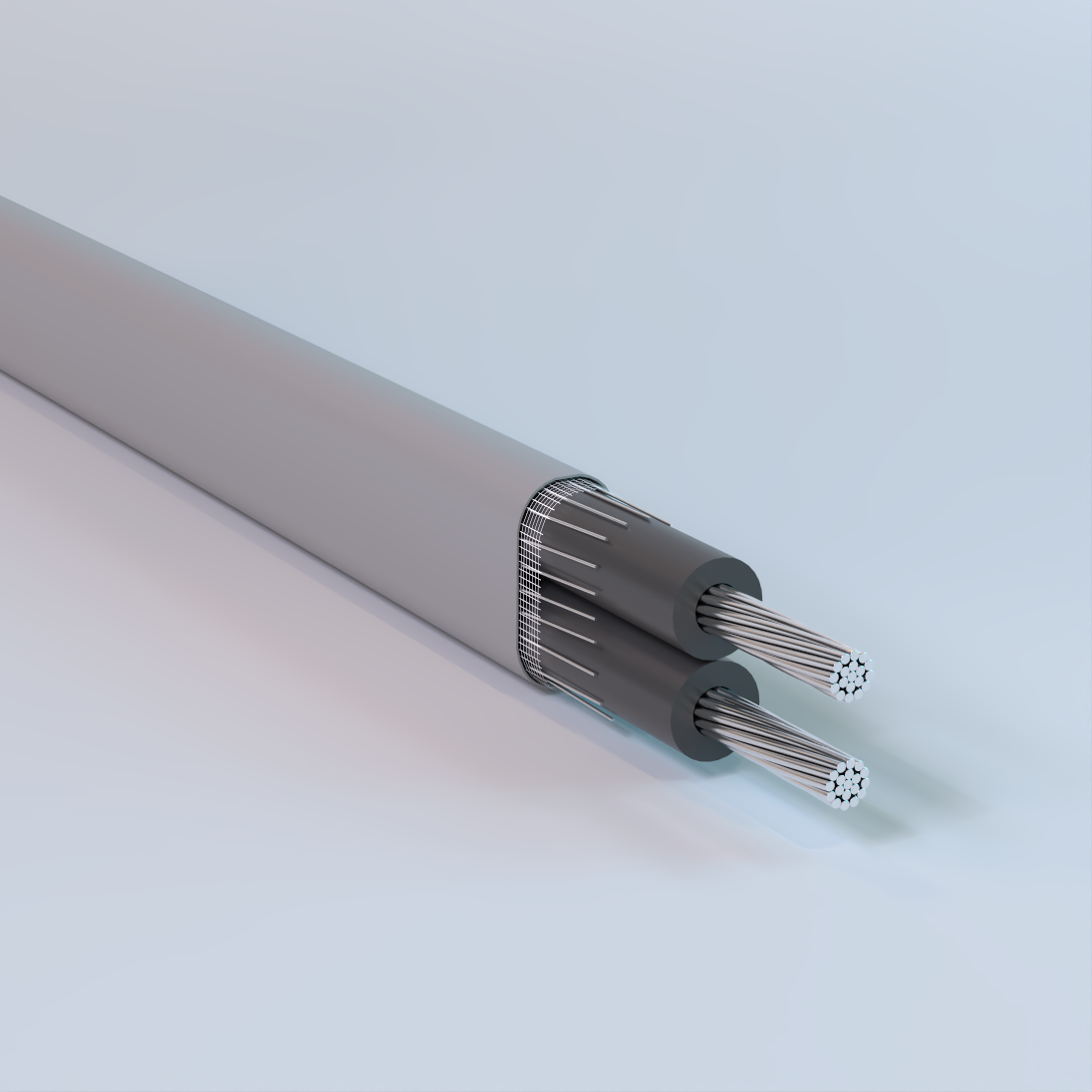

Type SEU, Service Entrance Cable
XLPE Insulation, PVC Jacket, 600V – Copper
Used as a service entry cable, to convey power from the service drop to the meter. Also in other branch circuits or feeders as permitted by NEC®.

Type SER, Service Entrance Cable
XHHW/XHHW-2, XLPE Insulation, PVC Jacket, 600V – Copper
Used as a service entry cable, to convey power from the service drop to the meter. Also in other branch circuits or feeders as permitted by NEC®.

TC-THHN/THWN-2
PVC Insulation & Nylon Cover, PVC Jacket, VW-1, SR, ER, FT4, Dir. Bur., 600V – Copper
Specifically approved for power, control, lighting and signal circuits, in manufacturing, industrial and commercial installations. For use in accordance with NEC®, Article 336, in cable trays, in raceways, or where supported in outdoor locations supported by a messenger wire.

Type MC
THHN/THWN-2, Singles, PVC Insulation & Nylon Cover, Green Insulated Ground, 600V – Copper
For services, feeders, and branch circuits. For power, lighting, control and signal circuits. Exposed or concealed. In cable tray and approved raceway. In dry locations and embedded in plaster finish on brick or other mansonry except in damp or wet locations. Per NEC® 300.22 (C), in environmental air-handling spaces. Class I Div. 2, Class II Div 2, and Class III Div hazardous locations, in accordance with NEC®.

Type MC
THHN/THWN-2, Singles, PVC Insulation & Nylon Cover, Green Insulated Ground & Additional Isolated Ground, 600V – Copper
Where a redundant or isolated grounding paths are required. For services, feeders, and branch circuits. For power, lighting, control and signal circuits. Exposed or concealed. In cable tray and approved raceway. In dry locations and embedded in plaster finish on brick or other mansonry except in damp or wet locations. Per NEC® 300.22 (C), in environmental air-handling spaces. Class I Div. 2, Class II Div. 2, and Class III Div. 1 hazardous locations, in accordance with NEC®.

Type MC-HCF-AIA
Aluminum Bonding Wire in Contact with Armor PVC Insulation & Nylon Cover, Green Armor, 600V – Copper
For installations requiring redundant, dedicated or isolated grounding paths. Used in health care facilities for branch circuit wiring in patient care areas of hospitals, medical centers, nursing homes, dental offices, clinics, outpatient facilites and other health care facilities in accordance with NEC® Articles 517, 330 and 300.4 as applicable. (Note: Use in hazardous anesthetizing areas is not permitted.) For places of assemblies and theaters per NEC® Articles 518 and 520, respectively. In cable tray and approved raceways. In dry locations and embedded in plaster finish on brick or other masonry except in damp or wet locations. Per NEC® 300.22 (C), in environmental air-handling spaces. Class I Div. 2, Class II Div. 2, and Class III Div. 1 hazardous locations, in accordance with NEC®. Requires use of UL Listed MCI-A fittings.

Type MC-PCS-AIA
Jacketed Pair Signal Cable under AIA Armor PVC Insulation & Nylon Cover, 600V – Copper
For services, feeders, and branch circuits. Suitable for power, lighting, control, and signal circuits requiring the use of signal cable in multi-residential, commercial, institutional and industrial applications. Ideal for luminary or LED controls and for SMART buildings. Exposed or concealed. In cable tray an approved raceway. In dry locations and embedded in plaster finish on brick or other masonry except in damp or wet locations. Per NEC® 300.22 (C), in environmental air-handling spaces. Class I Div. 2, Class II Div. 2, and Class III Div. 1 hazardous locations, in accordance with NEC®.
Aluminum Conductor

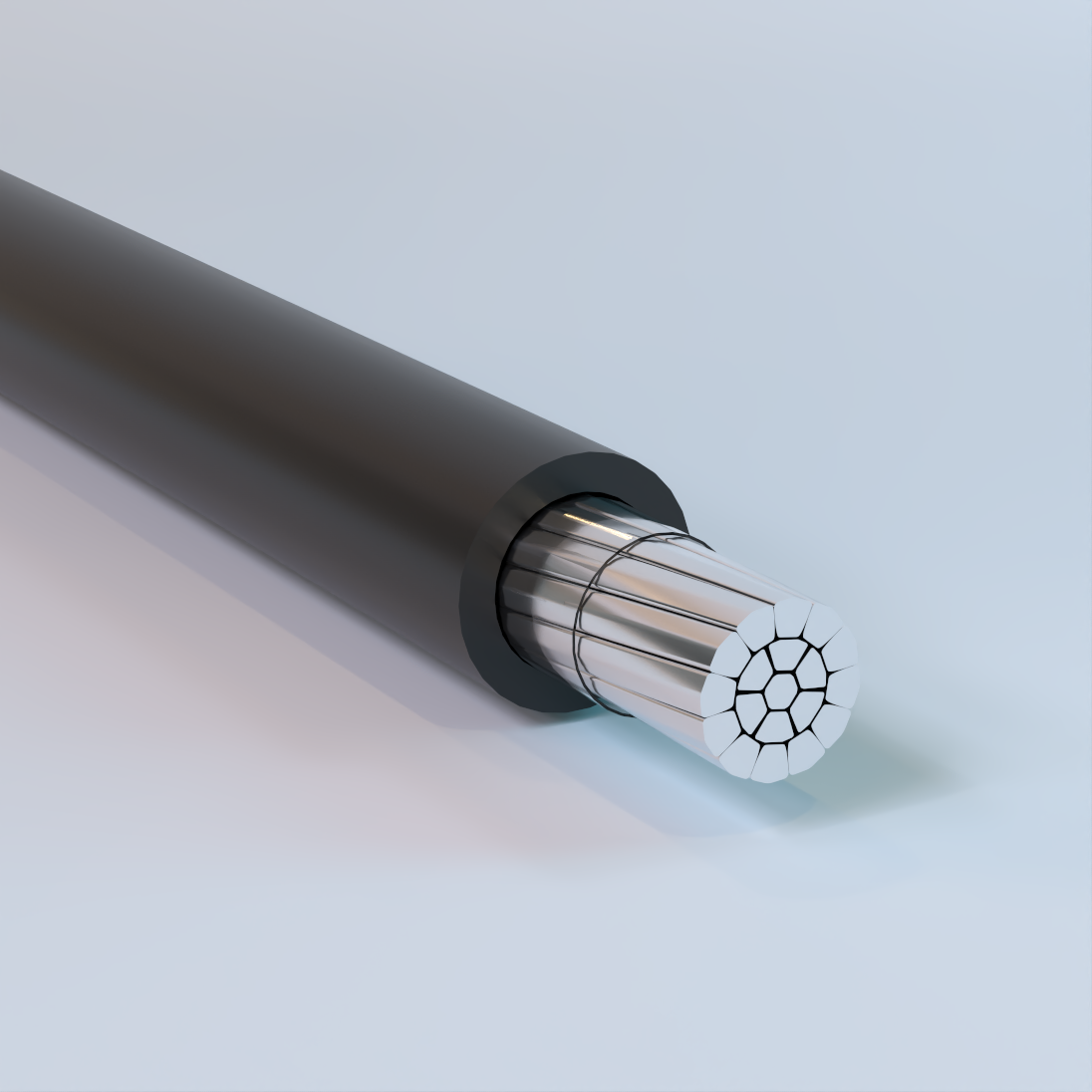

XHHW-2
XLPE Insulation, 600V & 1000V – Aluminum
Used for general purpose wiring in circuits not exceeding 600 or 1000 volts as indicated for the sizes. May be used in wet or dry locations, installed in conduit, duct, or open air.
Physical Data
| XHHW/XHHW-2 600/1000 V | ||||
|---|---|---|---|---|
| Size AWG or kcmil |
Number of Strands |
Insulation Thickness |
Approximate Outside Diameter |
Approximate Net Weight |
| mil | in | lb/kft | ||
| 6 | 7 | 45 | 0.26 | 40 |
| 4 | 7 | 45 | 0.31 | 59 |
| 2 | 7 | 45 | 0.36 | 87 |
| 1 | 19 | 55 | 0.41 | 110 |
| 1/0 | 19 | 55 | 0.45 | 134 |
| 2/0 | 19 | 55 | 0.49 | 165 |
| 3/0 | 19 | 55 | 0.54 | 202 |
| 4/0 | 19 | 55 | 0.59 | 249 |
| 250 | 37 | 65 | 0.66 | 295 |
| 300 | 37 | 65 | 0.71 | 348 |
| 350 | 37 | 65 | 0.75 | 400 |
| 400 | 37 | 65 | 0.8 | 452 |
| 500 | 37 | 65 | 0.87 | 555 |
| 600 | 61 | 80 | 0.98 | 672 |
| 750 | 61 | 80 | 1.08 | 827 |
| 900 | 61 | 80 | 1.17 | 1000 |
| 1000 | 61 | 80 | 1.23 | 1082 |
| The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. | ||||
Ampacity Data
| XHHW/XHHW-2, RHH/RHW-2, SIS, USE-2, RW90, RWU90 | ||
|---|---|---|
| Conductor Size AWG/kcmil |
75 °C (167 °F) |
90 °C (194 °F) |
| 6 | 50 | 55 |
| 4 | 65 | 75 |
| 3 | 75 | 85 |
| 2 | 90 | 100 |
| 1 | 100 | 115 |
| 1/0 | 120 | 135 |
| 2/0 | 135 | 150 |
| 3/0 | 155 | 175 |
| 4/0 | 180 | 205 |
| 250 | 205 | 230 |
| 300 | 230 | 260 |
| 350 | 250 | 280 |
| 400 | 270 | 305 |
| 500 | 310 | 350 |
| 600 | 340 | 385 |
| 700 | 375 | 425 |
| 750 | 385 | 435 |
| 800 | 395 | 445 |
| 900 | 425 | 480 |
| 1000 | 445 | 500 |
| 1250 | 485 | 545 |
| 1500 | 520 | 585 |
| 1750 | 545 | 615 |
| 2000 | 560 | 630 |
| NEC Table 310.15(B)(16) (formerly Table 310.16) Allowable Ampacities of Insulated Conductors Rated Up to and Including 2000 V, 60 °C Through 90 °C (140 °F Through 194 °F), Not More Than Three Current-Carrying Conductors in Raceway, Cable, or Earth (Directly Buried), Based on Ambient Temperature of 30 °C (86 °F). | ||
| XHHW/XHHW-2, RHH/RHW-2, SIS, USE-2, RW90, RWU90 (cont.) | ||
|---|---|---|
| Conductor Size AWG/kcmil |
75 °C (167 °F) |
90 °C (194 °F) |
| 6 | 75 | 85 |
| 4 | 100 | 115 |
| 3 | 115 | 130 |
| 2 | 135 | 150 |
| 1 | 155 | 175 |
| 1/0 | 180 | 205 |
| 2/0 | 210 | 235 |
| 3/0 | 240 | 270 |
| 4/0 | 280 | 315 |
| 250 | 315 | 355 |
| 300 | 350 | 395 |
| 350 | 395 | 445 |
| 400 | 425 | 480 |
| 500 | 485 | 545 |
| 600 | 545 | 615 |
| 700 | 595 | 670 |
| 750 | 620 | 700 |
| 800 | 645 | 725 |
| 900 | 700 | 790 |
| 1000 | 750 | 845 |
| 1250 | 855 | 965 |
| 1500 | 950 | 1070 |
| 1750 | 1050 | 1185 |
| 2000 | 1150 | 1295 |
| NEC Table 310.15(B)(17) (formerly Table 310.17) Allowable Ampacities of Single Insulated Conductors Rated Up to and Including 2000 V in Free Air, Based on Ambient Temperature of 30 °C (86 °F). | ||

XHHW-2 CT
XLPE Insulation, VW-1, GRI & GRII, SR, 600V & 1000V – Aluminum
Used for general purpose wiring in circuits not exceeding 600 or 1000 volts as indicated for the sizes. May be used in wet or dry locations, installed in conduit, duct, or open air.
Physical Data
| XHHW/XHHW-2 600/1000 V | ||||
|---|---|---|---|---|
| Size AWG or kcmil |
Number of Strands |
Insulation Thickness |
Approximate Outside Diameter |
Approximate Net Weight |
| mil | in | lb/kft | ||
| 6 | 7 | 45 | 0.26 | 43 |
| 4 | 7 | 45 | 0.31 | 62 |
| 2 | 7 | 45 | 0.36 | 92 |
| 1 | 19 | 55 | 0.41 | 116 |
| 1/0 | 19 | 55 | 0.45 | 140 |
| 2/0 | 19 | 55 | 0.49 | 170 |
| 3/0 | 19 | 55 | 0.54 | 208 |
| 4/0 | 19 | 55 | 0.59 | 255 |
| 250 | 37 | 65 | 0.66 | 307 |
| 300 | 37 | 65 | 0.71 | 360 |
| 350 | 37 | 65 | 0.75 | 413 |
| 400 | 37 | 65 | 0.8 | 466 |
| 500 | 37 | 65 | 0.87 | 570 |
| 600 | 61 | 80 | 0.98 | 699 |
| 750 | 61 | 80 | 1.08 | 856 |
| 900 | 61 | 80 | 1.17 | 1000 |
| 1000 | 61 | 80 | 1.23 | 1116 |
| The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. | ||||
Ampacity Data
| XHHW/XHHW-2, RHH/RHW-2, SIS, USE-2, RW90, RWU90 | ||
|---|---|---|
| Conductor Size AWG/kcmil |
75 °C (167 °F) |
90 °C (194 °F) |
| 6 | 50 | 55 |
| 4 | 65 | 75 |
| 3 | 75 | 85 |
| 2 | 90 | 100 |
| 1 | 100 | 115 |
| 1/0 | 120 | 135 |
| 2/0 | 135 | 150 |
| 3/0 | 155 | 175 |
| 4/0 | 180 | 205 |
| 250 | 205 | 230 |
| 300 | 230 | 260 |
| 350 | 250 | 280 |
| 400 | 270 | 305 |
| 500 | 310 | 350 |
| 600 | 340 | 385 |
| 700 | 375 | 425 |
| 750 | 385 | 435 |
| 800 | 395 | 445 |
| 900 | 425 | 480 |
| 1000 | 445 | 500 |
| 1250 | 485 | 545 |
| 1500 | 520 | 585 |
| 1750 | 545 | 615 |
| 2000 | 560 | 630 |
| NEC Table 310.15(B)(16) (formerly Table 310.16) Allowable Ampacities of Insulated Conductors Rated Up to and Including 2000 V, 60 °C Through 90 °C (140 °F Through 194 °F), Not More Than Three Current-Carrying Conductors in Raceway, Cable, or Earth (Directly Buried), Based on Ambient Temperature of 30 °C (86 °F). | ||
| XHHW/XHHW-2, RHH/RHW-2, SIS, USE-2, RW90, RWU90 (cont.) | ||
|---|---|---|
| Conductor Size AWG/kcmil |
75 °C (167 °F) |
90 °C (194 °F) |
| 6 | 75 | 85 |
| 4 | 100 | 115 |
| 3 | 115 | 130 |
| 2 | 135 | 150 |
| 1 | 155 | 175 |
| 1/0 | 180 | 205 |
| 2/0 | 210 | 235 |
| 3/0 | 240 | 270 |
| 4/0 | 280 | 315 |
| 250 | 315 | 355 |
| 300 | 350 | 395 |
| 350 | 395 | 445 |
| 400 | 425 | 480 |
| 500 | 485 | 545 |
| 600 | 545 | 615 |
| 700 | 595 | 670 |
| 750 | 620 | 700 |
| 800 | 645 | 725 |
| 900 | 700 | 790 |
| 1000 | 750 | 845 |
| 1250 | 855 | 965 |
| 1500 | 950 | 1070 |
| 1750 | 1050 | 1185 |
| 2000 | 1150 | 1295 |
| NEC Table 310.15(B)(17) (formerly Table 310.17) Allowable Ampacities of Single Insulated Conductors Rated Up to and Including 2000 V in Free Air, Based on Ambient Temperature of 30 °C (86 °F). | ||

RW90 & RW75
XLPE Insulation, 600V-2000V – Aluminum
Used in general purpose wiring in circuits not exceeding 2000 volts. May be used in wet or dry locations, installed in raceway, duct and aerial installations. For exposed wiring in wet locations, or exposed to weather. For use in raceways, except cable trays, in wet locations. For use in ventilated and non-ventilated cable trays, in vaults and switch rooms.
Physical Data
| RW90/RW75 600 V | ||||
|---|---|---|---|---|
| Size AWG or kcmil |
Number of Strands |
Insulation Thickness |
Approximate Outside Diameter |
Approximate Net Weight |
| mil | in | lb/kft | ||
| 6 | 7 | 45 | 0.26 | 40 |
| 4 | 7 | 45 | 0.31 | 59 |
| 2 | 7 | 45 | 0.36 | 87 |
| 1 | 19 | 55 | 0.41 | 110 |
| 1/0 | 19 | 55 | 0.45 | 134 |
| 2/0 | 19 | 55 | 0.49 | 165 |
| 3/0 | 19 | 55 | 0.54 | 202 |
| 4/0 | 37 | 55 | 0.59 | 249 |
| 250 | 37 | 65 | 0.66 | 295 |
| 300 | 37 | 65 | 0.71 | 348 |
| 350 | 37 | 65 | 0.75 | 400 |
| 400 | 37 | 65 | 0.8 | 452 |
| 500 | 37 | 65 | 0.87 | 555 |
| 600 | 61 | 80 | 0.98 | 672 |
| 750 | 61 | 80 | 1.08 | 827 |
| 1000 | 61 | 80 | 1.23 | 1082 |
| The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. | ||||
| RW90/RW75 1000 V | ||||
|---|---|---|---|---|
| Size AWG or kcmil |
Number of Strands |
Insulation Thickness |
Approximate Outside Diameter |
Approximate Net Weight |
| mil | in | lb/kft | ||
| 6 | 7 | 60 | 0.3 | 45 |
| 4 | 7 | 60 | 0.34 | 63 |
| 2 | 7 | 60 | 0.39 | 92 |
| 1 | 19 | 80 | 0.47 | 122 |
| 1/0 | 19 | 80 | 0.51 | 146 |
| 2/0 | 19 | 80 | 0.55 | 177 |
| 3/0 | 19 | 80 | 0.6 | 215 |
| 4/0 | 37 | 80 | 0.65 | 263 |
| 250 | 37 | 90 | 0.71 | 313 |
| 300 | 37 | 90 | 0.76 | 367 |
| 350 | 37 | 90 | 0.81 | 420 |
| 400 | 37 | 90 | 0.85 | 473 |
| 500 | 37 | 90 | 0.93 | 577 |
| 600 | 61 | 90 | 1.01 | 681 |
| 750 | 61 | 90 | 1.1 | 836 |
| 1000 | 61 | 90 | 1.25 | 1092 |
| The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. | ||||
| RW90/RW75 2000 V | ||||
|---|---|---|---|---|
| Size AWG or kcmil |
Number of Strands |
Insulation Thickness |
Approximate Outside Diameter |
Approximate Net Weight |
| mil | in | lb/kft | ||
| 6 | 7 | 70 | 0.32 | 51 |
| 4 | 7 | 70 | 0.36 | 71 |
| 2 | 7 | 70 | 0.42 | 102 |
| 1 | 19 | 90 | 0.49 | 135 |
| 1/0 | 19 | 90 | 0.53 | 161 |
| 2/0 | 19 | 90 | 0.57 | 194 |
| 3/0 | 19 | 90 | 0.62 | 234 |
| 4/0 | 37 | 90 | 0.67 | 284 |
| 250 | 37 | 105 | 0.75 | 339 |
| 300 | 37 | 105 | 0.8 | 394 |
| 350 | 37 | 105 | 0.84 | 450 |
| 400 | 37 | 105 | 0.88 | 504 |
| 500 | 37 | 105 | 0.96 | 612 |
| 600 | 61 | 120 | 1.07 | 736 |
| 750 | 61 | 120 | 1.17 | 897 |
| 1000 | 61 | 120 | 1.32 | 1161 |
| The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. | ||||
Ampacity Data
| XHHW/XHHW-2, RHH/RHW-2, SIS, USE-2, RW90, RWU90 | ||
|---|---|---|
| Conductor Size AWG/kcmil |
75 °C (167 °F) |
90 °C (194 °F) |
| 6 | 50 | 55 |
| 4 | 65 | 75 |
| 3 | 75 | 85 |
| 2 | 90 | 100 |
| 1 | 100 | 115 |
| 1/0 | 120 | 135 |
| 2/0 | 135 | 150 |
| 3/0 | 155 | 175 |
| 4/0 | 180 | 205 |
| 250 | 205 | 230 |
| 300 | 230 | 260 |
| 350 | 250 | 280 |
| 400 | 270 | 305 |
| 500 | 310 | 350 |
| 600 | 340 | 385 |
| 700 | 375 | 425 |
| 750 | 385 | 435 |
| 800 | 395 | 445 |
| 900 | 425 | 480 |
| 1000 | 445 | 500 |
| 1250 | 485 | 545 |
| 1500 | 520 | 585 |
| 1750 | 545 | 615 |
| 2000 | 560 | 630 |
| NEC Table 310.15(B)(16) (formerly Table 310.16) Allowable Ampacities of Insulated Conductors Rated Up to and Including 2000 V, 60 °C Through 90 °C (140 °F Through 194 °F), Not More Than Three Current-Carrying Conductors in Raceway, Cable, or Earth (Directly Buried), Based on Ambient Temperature of 30 °C (86 °F). | ||
| XHHW/XHHW-2, RHH/RHW-2, SIS, USE-2, RW90, RWU90 (cont.) | ||
|---|---|---|
| Conductor Size AWG/kcmil |
75 °C (167 °F) |
90 °C (194 °F) |
| 6 | 75 | 85 |
| 4 | 100 | 115 |
| 3 | 115 | 130 |
| 2 | 135 | 150 |
| 1 | 155 | 175 |
| 1/0 | 180 | 205 |
| 2/0 | 210 | 235 |
| 3/0 | 240 | 270 |
| 4/0 | 280 | 315 |
| 250 | 315 | 355 |
| 300 | 350 | 395 |
| 350 | 395 | 445 |
| 400 | 425 | 480 |
| 500 | 485 | 545 |
| 600 | 545 | 615 |
| 700 | 595 | 670 |
| 750 | 620 | 700 |
| 800 | 645 | 725 |
| 900 | 700 | 790 |
| 1000 | 750 | 845 |
| 1250 | 855 | 965 |
| 1500 | 950 | 1070 |
| 1750 | 1050 | 1185 |
| 2000 | 1150 | 1295 |
| NEC Table 310.15(B)(17) (formerly Table 310.17) Allowable Ampacities of Single Insulated Conductors Rated Up to and Including 2000 V in Free Air, Based on Ambient Temperature of 30 °C (86 °F). | ||

RWU90 & RWU75
XLPE Insulation, 1000V – Aluminum
Used in general purpose wiring in circuits not exceeding 1000 volts. May be used in wet or dry locations, installed in raceway, duct and aerial installations. For exposed wiring in wet locations, or exposed to weather. For use in raceways, except cable trays, in wet locations. For use in ventilated and non-ventilated cable trays in vaults and switch rooms.
Physical Data
| RWU90/RWU75 1000 V | ||||
|---|---|---|---|---|
| Size AWG or kcmil |
Number of Strands |
Insulation Thickness |
Approximate Outside Diameter |
Approximate Net Weight |
| mil | in | lb/kft | ||
| 6 | 7 | 80 | 0.34 | 53 |
| 4 | 7 | 80 | 0.38 | 73 |
| 2 | 7 | 80 | 0.44 | 103 |
| 1 | 19 | 95 | 0.5 | 132 |
| 1/0 | 19 | 95 | 0.54 | 157 |
| 2/0 | 19 | 95 | 0.58 | 189 |
| 3/0 | 19 | 95 | 0.63 | 227 |
| 4/0 | 19 | 95 | 0.68 | 276 |
| 250 | 37 | 110 | 0.76 | 333 |
| 300 | 37 | 110 | 0.81 | 388 |
| 350 | 37 | 110 | 0.85 | 442 |
| 400 | 37 | 110 | 0.9 | 496 |
| 500 | 61 | 110 | 0.97 | 602 |
| 600 | 61 | 125 | 1.08 | 729 |
| 750 | 61 | 125 | 1.18 | 889 |
| 1000 | 61 | 125 | 1.33 | 1152 |
| The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. | ||||
Ampacity Data
| XHHW/XHHW-2, RHH/RHW-2, SIS, USE-2, RW90, RWU90 | ||
|---|---|---|
| Conductor Size AWG/kcmil |
75 °C (167 °F) |
90 °C (194 °F) |
| 6 | 50 | 55 |
| 4 | 65 | 75 |
| 3 | 75 | 85 |
| 2 | 90 | 100 |
| 1 | 100 | 115 |
| 1/0 | 120 | 135 |
| 2/0 | 135 | 150 |
| 3/0 | 155 | 175 |
| 4/0 | 180 | 205 |
| 250 | 205 | 230 |
| 300 | 230 | 260 |
| 350 | 250 | 280 |
| 400 | 270 | 305 |
| 500 | 310 | 350 |
| 600 | 340 | 385 |
| 700 | 375 | 425 |
| 750 | 385 | 435 |
| 800 | 395 | 445 |
| 900 | 425 | 480 |
| 1000 | 445 | 500 |
| 1250 | 485 | 545 |
| 1500 | 520 | 585 |
| 1750 | 545 | 615 |
| 2000 | 560 | 630 |
| NEC Table 310.15(B)(16) (formerly Table 310.16) Allowable Ampacities of Insulated Conductors Rated Up to and Including 2000 V, 60 °C Through 90 °C (140 °F Through 194 °F), Not More Than Three Current-Carrying Conductors in Raceway, Cable, or Earth (Directly Buried), Based on Ambient Temperature of 30 °C (86 °F). | ||
| XHHW/XHHW-2, RHH/RHW-2, SIS, USE-2, RW90, RWU90 (cont.) | ||
|---|---|---|
| Conductor Size AWG/kcmil |
75 °C (167 °F) |
90 °C (194 °F) |
| 6 | 75 | 85 |
| 4 | 100 | 115 |
| 3 | 115 | 130 |
| 2 | 135 | 150 |
| 1 | 155 | 175 |
| 1/0 | 180 | 205 |
| 2/0 | 210 | 235 |
| 3/0 | 240 | 270 |
| 4/0 | 280 | 315 |
| 250 | 315 | 355 |
| 300 | 350 | 395 |
| 350 | 395 | 445 |
| 400 | 425 | 480 |
| 500 | 485 | 545 |
| 600 | 545 | 615 |
| 700 | 595 | 670 |
| 750 | 620 | 700 |
| 800 | 645 | 725 |
| 900 | 700 | 790 |
| 1000 | 750 | 845 |
| 1250 | 855 | 965 |
| 1500 | 950 | 1070 |
| 1750 | 1050 | 1185 |
| 2000 | 1150 | 1295 |
| NEC Table 310.15(B)(17) (formerly Table 310.17) Allowable Ampacities of Single Insulated Conductors Rated Up to and Including 2000 V in Free Air, Based on Ambient Temperature of 30 °C (86 °F). | ||

RHH/RHW-2/USE-2
XLPE Insulation, 600V – Aluminum
Used in general purpose wiring in circuits not exceeding 600 volts. May be used in wet or dry locations, installed in conduit, duct or open air or direct burial.
Physical Data
| RHH/RHW-2 – USE-2 600 V | ||||
|---|---|---|---|---|
| Size AWG or kcmil |
Number of Strands |
Insulation Thickness |
Approximate Outside Diameter |
Approximate Net Weight |
| mil | in | lb/kft | ||
| 6 | 7 | 60 | 0.3 | 47 |
| 4 | 7 | 60 | 0.34 | 66 |
| 2 | 7 | 60 | 0.39 | 96 |
| 1 | 19 | 80 | 0.47 | 127 |
| 1/0 | 19 | 80 | 0.5 | 153 |
| 2/0 | 19 | 80 | 0.54 | 185 |
| 3/0 | 19 | 80 | 0.59 | 224 |
| 4/0 | 19 | 80 | 0.64 | 273 |
| 250 | 37 | 95 | 0.72 | 327 |
| 300 | 37 | 95 | 0.77 | 382 |
| 350 | 37 | 95 | 0.82 | 436 |
| 400 | 37 | 95 | 0.86 | 491 |
| 500 | 37 | 95 | 0.94 | 597 |
| 600 | 61 | 110 | 1.04 | 720 |
| 750 | 61 | 110 | 1.14 | 879 |
| 1000 | 61 | 110 | 1.29 | 1141 |
| The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. | ||||
Ampacity Data
| XHHW/XHHW-2, RHH/RHW-2, SIS, USE-2, RW90, RWU90 | ||
|---|---|---|
| Conductor Size AWG/kcmil |
75 °C (167 °F) |
90 °C (194 °F) |
| 6 | 50 | 55 |
| 4 | 65 | 75 |
| 3 | 75 | 85 |
| 2 | 90 | 100 |
| 1 | 100 | 115 |
| 1/0 | 120 | 135 |
| 2/0 | 135 | 150 |
| 3/0 | 155 | 175 |
| 4/0 | 180 | 205 |
| 250 | 205 | 230 |
| 300 | 230 | 260 |
| 350 | 250 | 280 |
| 400 | 270 | 305 |
| 500 | 310 | 350 |
| 600 | 340 | 385 |
| 700 | 375 | 425 |
| 750 | 385 | 435 |
| 800 | 395 | 445 |
| 900 | 425 | 480 |
| 1000 | 445 | 500 |
| 1250 | 485 | 545 |
| 1500 | 520 | 585 |
| 1750 | 545 | 615 |
| 2000 | 560 | 630 |
| NEC Table 310.15(B)(16) (formerly Table 310.16) Allowable Ampacities of Insulated Conductors Rated Up to and Including 2000 V, 60 °C Through 90 °C (140 °F Through 194 °F), Not More Than Three Current-Carrying Conductors in Raceway, Cable, or Earth (Directly Buried), Based on Ambient Temperature of 30 °C (86 °F). | ||
| XHHW/XHHW-2, RHH/RHW-2, SIS, USE-2, RW90, RWU90 (cont.) | ||
|---|---|---|
| Conductor Size AWG/kcmil |
75 °C (167 °F) |
90 °C (194 °F) |
| 6 | 75 | 85 |
| 4 | 100 | 115 |
| 3 | 115 | 130 |
| 2 | 135 | 150 |
| 1 | 155 | 175 |
| 1/0 | 180 | 205 |
| 2/0 | 210 | 235 |
| 3/0 | 240 | 270 |
| 4/0 | 280 | 315 |
| 250 | 315 | 355 |
| 300 | 350 | 395 |
| 350 | 395 | 445 |
| 400 | 425 | 480 |
| 500 | 485 | 545 |
| 600 | 545 | 615 |
| 700 | 595 | 670 |
| 750 | 620 | 700 |
| 800 | 645 | 725 |
| 900 | 700 | 790 |
| 1000 | 750 | 845 |
| 1250 | 855 | 965 |
| 1500 | 950 | 1070 |
| 1750 | 1050 | 1185 |
| 2000 | 1150 | 1295 |
| NEC Table 310.15(B)(17) (formerly Table 310.17) Allowable Ampacities of Single Insulated Conductors Rated Up to and Including 2000 V in Free Air, Based on Ambient Temperature of 30 °C (86 °F). | ||

RHH/RHW-2
XLPE Insulation, 2000V – Aluminum
Used for general purpose wiring in circuits not exceeding 2000 volts. May be used in wet or dry locations, installed in conduit, duct or open air.
Physical Data
Physical Data
| RHH/RHW-2 2000 V | ||||
|---|---|---|---|---|
| Size AWG or kcmil |
Number of Strands |
Insulation Thickness |
Approximate Outside Diameter |
Approximate Net Weight |
| mil | in | lb/kft | ||
| 6 | 7 | 70 | 0.32 | 51 |
| 4 | 7 | 70 | 0.36 | 71 |
| 2 | 7 | 70 | 0.42 | 102 |
| 1 | 19 | 90 | 0.49 | 135 |
| 1/0 | 19 | 90 | 0.53 | 161 |
| 2/0 | 19 | 90 | 0.57 | 194 |
| 3/0 | 19 | 90 | 0.62 | 234 |
| 4/0 | 19 | 90 | 0.67 | 284 |
| 250 | 37 | 105 | 0.75 | 339 |
| 300 | 37 | 105 | 0.8 | 394 |
| 350 | 37 | 105 | 0.84 | 450 |
| 400 | 37 | 105 | 0.88 | 504 |
| 500 | 37 | 105 | 0.96 | 612 |
| 600 | 61 | 120 | 1.07 | 736 |
| 700 | 61 | 120 | 1.13 | 843 |
| 750 | 61 | 120 | 1.17 | 897 |
| 1000 | 61 | 120 | 1.32 | 1161 |
| The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. | ||||
Ampacity Data
| XHHW/XHHW-2, RHH/RHW-2, SIS, USE-2, RW90, RWU90 | ||
|---|---|---|
| Conductor Size AWG/kcmil |
75 °C (167 °F) |
90 °C (194 °F) |
| 6 | 50 | 55 |
| 4 | 65 | 75 |
| 3 | 75 | 85 |
| 2 | 90 | 100 |
| 1 | 100 | 115 |
| 1/0 | 120 | 135 |
| 2/0 | 135 | 150 |
| 3/0 | 155 | 175 |
| 4/0 | 180 | 205 |
| 250 | 205 | 230 |
| 300 | 230 | 260 |
| 350 | 250 | 280 |
| 400 | 270 | 305 |
| 500 | 310 | 350 |
| 600 | 340 | 385 |
| 700 | 375 | 425 |
| 750 | 385 | 435 |
| 800 | 395 | 445 |
| 900 | 425 | 480 |
| 1000 | 445 | 500 |
| 1250 | 485 | 545 |
| 1500 | 520 | 585 |
| 1750 | 545 | 615 |
| 2000 | 560 | 630 |
| NEC Table 310.15(B)(16) (formerly Table 310.16) Allowable Ampacities of Insulated Conductors Rated Up to and Including 2000 V, 60 °C Through 90 °C (140 °F Through 194 °F), Not More Than Three Current-Carrying Conductors in Raceway, Cable, or Earth (Directly Buried), Based on Ambient Temperature of 30 °C (86 °F). | ||
| XHHW/XHHW-2, RHH/RHW-2, SIS, USE-2, RW90, RWU90 (cont.) | ||
|---|---|---|
| Conductor Size AWG/kcmil |
75 °C (167 °F) |
90 °C (194 °F) |
| 6 | 75 | 85 |
| 4 | 100 | 115 |
| 3 | 115 | 130 |
| 2 | 135 | 150 |
| 1 | 155 | 175 |
| 1/0 | 180 | 205 |
| 2/0 | 210 | 235 |
| 3/0 | 240 | 270 |
| 4/0 | 280 | 315 |
| 250 | 315 | 355 |
| 300 | 350 | 395 |
| 350 | 395 | 445 |
| 400 | 425 | 480 |
| 500 | 485 | 545 |
| 600 | 545 | 615 |
| 700 | 595 | 670 |
| 750 | 620 | 700 |
| 800 | 645 | 725 |
| 900 | 700 | 790 |
| 1000 | 750 | 845 |
| 1250 | 855 | 965 |
| 1500 | 950 | 1070 |
| 1750 | 1050 | 1185 |
| 2000 | 1150 | 1295 |
| NEC Table 310.15(B)(17) (formerly Table 310.17) Allowable Ampacities of Single Insulated Conductors Rated Up to and Including 2000 V in Free Air, Based on Ambient Temperature of 30 °C (86 °F). | ||

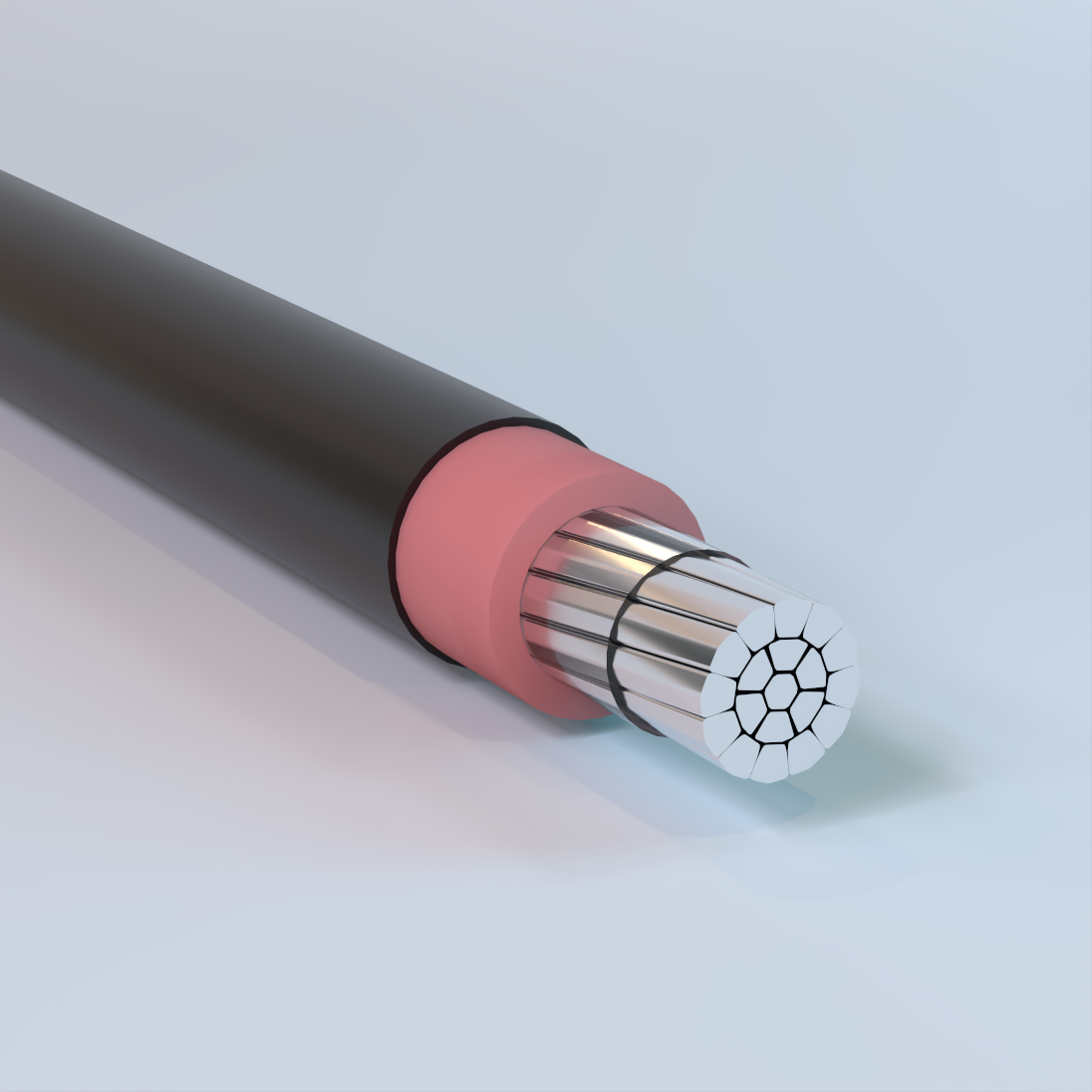

RHH/RHW-2
EPR Insulation, CPE Jacket, 600V & 2000V – Aluminum
Used for power, lighting, signal and control circuits installed in wet or dry locations. May be installed in conduit, duct, tray, and oper air, and aerial installations. Suitable for use in industrial
areas and utility systems where flame resistance is essential.
Physical Data
| RHH/RHW-2 600 V | |||||
|---|---|---|---|---|---|
| Insulation Thickness | |||||
| Size AWG or kcmil |
Number of Strands |
Inner Layer | Outer Layer | Approximate Outside Diameter |
Approximate Net Weight |
| mil | mil | in | lb/kft | ||
| 14 | 7 | 30 | 15 | 0.17 | 24 |
| 12 | 7 | 30 | 15 | 0.18 | 33 |
| 10 | 7 | 30 | 15 | 0.21 | 47 |
| 8 | 7 | 45 | 15 | 0.27 | 77 |
| 6 | 7 | 45 | 30 | 0.34 | 122 |
| 4 | 7 | 45 | 30 | 0.38 | 178 |
| 2 | 7 | 45 | 30 | 0.44 | 265 |
| 1 | 19 | 55 | 45 | 0.54 | 347 |
| 1/0 | 19 | 55 | 45 | 0.58 | 423 |
| 2/0 | 19 | 55 | 45 | 0.62 | 517 |
| 3/0 | 19 | 55 | 45 | 0.67 | 634 |
| 4/0 | 19 | 55 | 45 | 0.73 | 781 |
| 250 | 37 | 65 | 65 | 0.84 | 959 |
| 300 | 37 | 65 | 65 | 0.89 | 1127 |
| 350 | 37 | 65 | 65 | 0.94 | 1295 |
| 400 | 37 | 65 | 65 | 0.99 | 1456 |
| 500 | 37 | 65 | 65 | 1.07 | 1792 |
| 600 | 61 | 80 | 65 | 1.18 | 2156 |
| 750 | 61 | 80 | 65 | 1.28 | 2649 |
| 1000 | 61 | 80 | 65 | 1.43 | 3465 |
| The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. | |||||
| RHH/RHW-2 2000 V | |||||
|---|---|---|---|---|---|
| Insulation Thickness | |||||
| Size AWG or kcmil |
Number of Strands |
Inner Layer | Outer Layer | Approximate Outside Diameter |
Approximate Net Weight |
| mil | mil | in | lb/kft | ||
| 14 | 7 | 45 | 15 | 0.2 | 29 |
| 12 | 7 | 45 | 15 | 0.22 | 39 |
| 10 | 7 | 45 | 15 | 0.24 | 54 |
| 8 | 7 | 55 | 30 | 0.32 | 92 |
| 6 | 7 | 55 | 30 | 0.36 | 129 |
| 4 | 7 | 55 | 30 | 0.41 | 186 |
| 2 | 7 | 55 | 30 | 0.46 | 274 |
| 1 | 19 | 65 | 45 | 0.56 | 358 |
| 1/0 | 19 | 65 | 45 | 0.6 | 434 |
| 2/0 | 19 | 65 | 45 | 0.64 | 529 |
| 3/0 | 19 | 65 | 45 | 0.69 | 648 |
| 4/0 | 19 | 65 | 45 | 0.75 | 795 |
| 250 | 37 | 75 | 65 | 0.86 | 975 |
| 300 | 37 | 75 | 65 | 0.91 | 1144 |
| 350 | 37 | 75 | 65 | 0.96 | 1314 |
| 400 | 37 | 75 | 65 | 1.01 | 1475 |
| 500 | 37 | 75 | 65 | 1.09 | 1813 |
| 600 | 61 | 90 | 65 | 1.2 | 2179 |
| 750 | 61 | 90 | 65 | 1.3 | 2674 |
| 1000 | 61 | 90 | 65 | 1.45 | 3493 |
| The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. | |||||
Ampacity Data
| XHHW/XHHW-2, RHH/RHW-2, SIS, USE-2, RW90, RWU90 | ||
|---|---|---|
| Conductor Size AWG/kcmil |
75 °C (167 °F) |
90 °C (194 °F) |
| 6 | 50 | 55 |
| 4 | 65 | 75 |
| 3 | 75 | 85 |
| 2 | 90 | 100 |
| 1 | 100 | 115 |
| 1/0 | 120 | 135 |
| 2/0 | 135 | 150 |
| 3/0 | 155 | 175 |
| 4/0 | 180 | 205 |
| 250 | 205 | 230 |
| 300 | 230 | 260 |
| 350 | 250 | 280 |
| 400 | 270 | 305 |
| 500 | 310 | 350 |
| 600 | 340 | 385 |
| 700 | 375 | 425 |
| 750 | 385 | 435 |
| 800 | 395 | 445 |
| 900 | 425 | 480 |
| 1000 | 445 | 500 |
| 1250 | 485 | 545 |
| 1500 | 520 | 585 |
| 1750 | 545 | 615 |
| 2000 | 560 | 630 |
| NEC Table 310.15(B)(16) (formerly Table 310.16) Allowable Ampacities of Insulated Conductors Rated Up to and Including 2000 V, 60 °C Through 90 °C (140 °F Through 194 °F), Not More Than Three Current-Carrying Conductors in Raceway, Cable, or Earth (Directly Buried), Based on Ambient Temperature of 30 °C (86 °F). | ||
| XHHW/XHHW-2, RHH/RHW-2, SIS, USE-2, RW90, RWU90 (cont.) | ||
|---|---|---|
| Conductor Size AWG/kcmil |
75 °C (167 °F) |
90 °C (194 °F) |
| 6 | 75 | 85 |
| 4 | 100 | 115 |
| 3 | 115 | 130 |
| 2 | 135 | 150 |
| 1 | 155 | 175 |
| 1/0 | 180 | 205 |
| 2/0 | 210 | 235 |
| 3/0 | 240 | 270 |
| 4/0 | 280 | 315 |
| 250 | 315 | 355 |
| 300 | 350 | 395 |
| 350 | 395 | 445 |
| 400 | 425 | 480 |
| 500 | 485 | 545 |
| 600 | 545 | 615 |
| 700 | 595 | 670 |
| 750 | 620 | 700 |
| 800 | 645 | 725 |
| 900 | 700 | 790 |
| 1000 | 750 | 845 |
| 1250 | 855 | 965 |
| 1500 | 950 | 1070 |
| 1750 | 1050 | 1185 |
| 2000 | 1150 | 1295 |
| NEC Table 310.15(B)(17) (formerly Table 310.17) Allowable Ampacities of Single Insulated Conductors Rated Up to and Including 2000 V in Free Air, Based on Ambient Temperature of 30 °C (86 °F). | ||

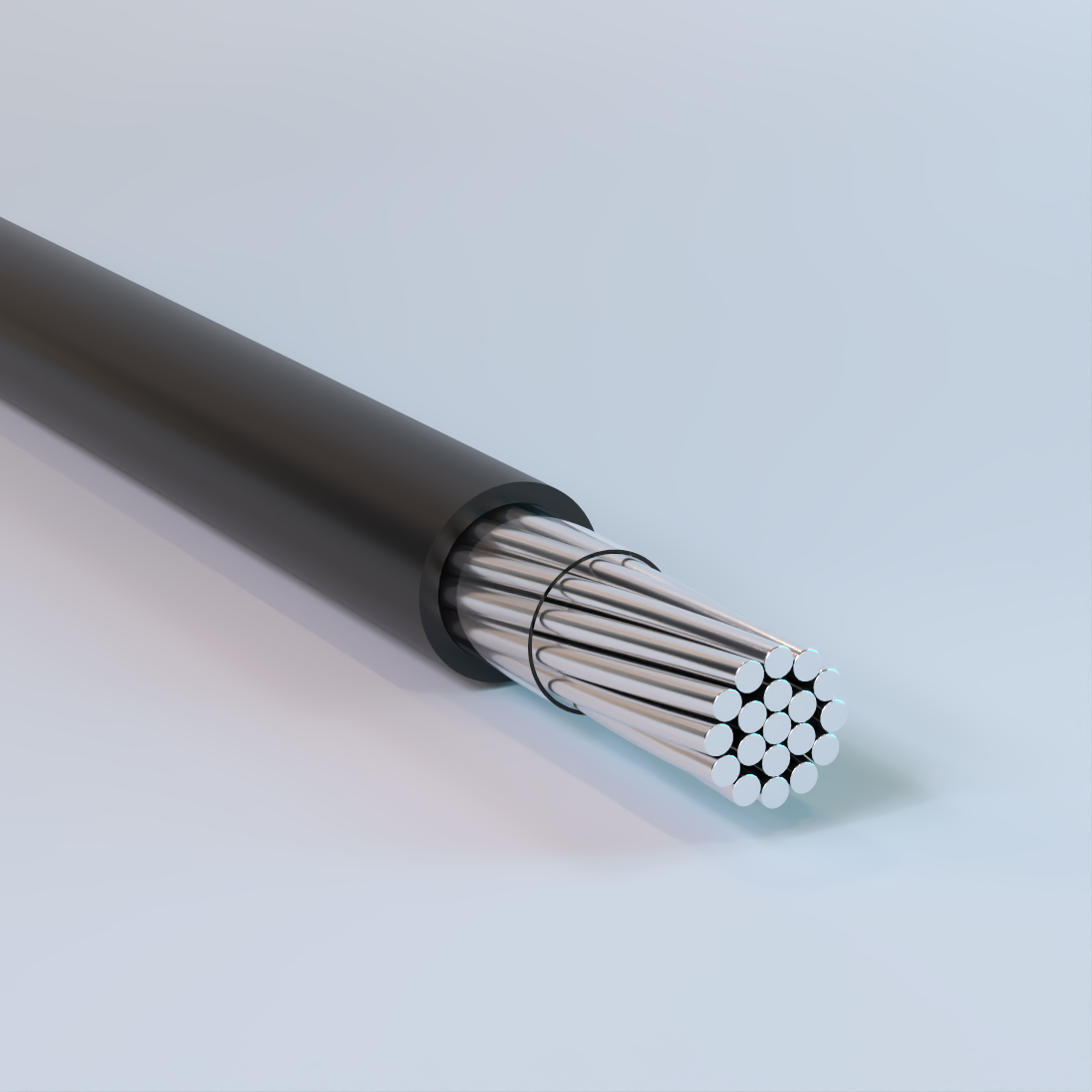

Photovoltaic Cable (PV) AA-8000
XLPE Insulation, 1000V or 2000V – Aluminum
For interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Wiring Systems, Article 690, and other applicable parts of the National Electrical Code (NEC), NFPA 70.

Photovoltaic Cable (PV) AA-8000
EPCV Insulation, 600V, 1kV & 2kV – Aluminum
For interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Wiring Systems, Article 690, and other applicable parts of the National Electrical Code (NEC), NFPA 70.

Type SEU, Service Entrance Cable
XLPE Insulation, PVC Jacket, 600V – Copper
Used as a service entry cable, to convey power from the service drop to the meter. Also in other branch circuits or feeders as permitted by NEC®.

Type SER, Service Entrance Cable
XHHW/XHHW-2, XLPE Insulation, PVC Jacket, 600V – Aluminum
Used as a service entry cable, to convey power from the service drop to the meter. Also in other branch circuits or feeders as permitted by NEC®.

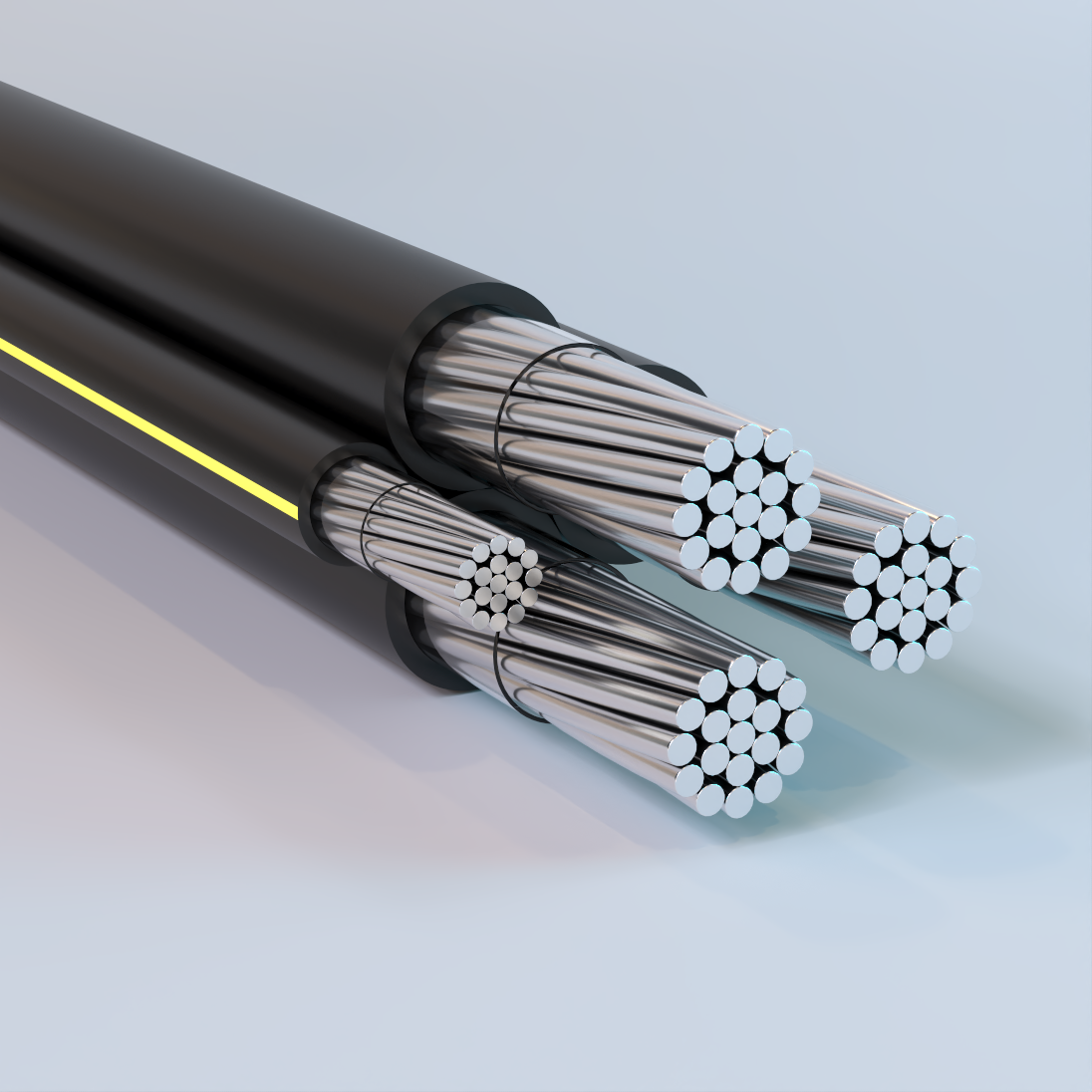

Secondary URD
Underground, Single/Duplex/Triplex/Quadruplex, XLPE Insulated, 600V – Aluminum
Used for secondary distribution and underground service at 600 volts or less. May be used in ducts or direct burial.

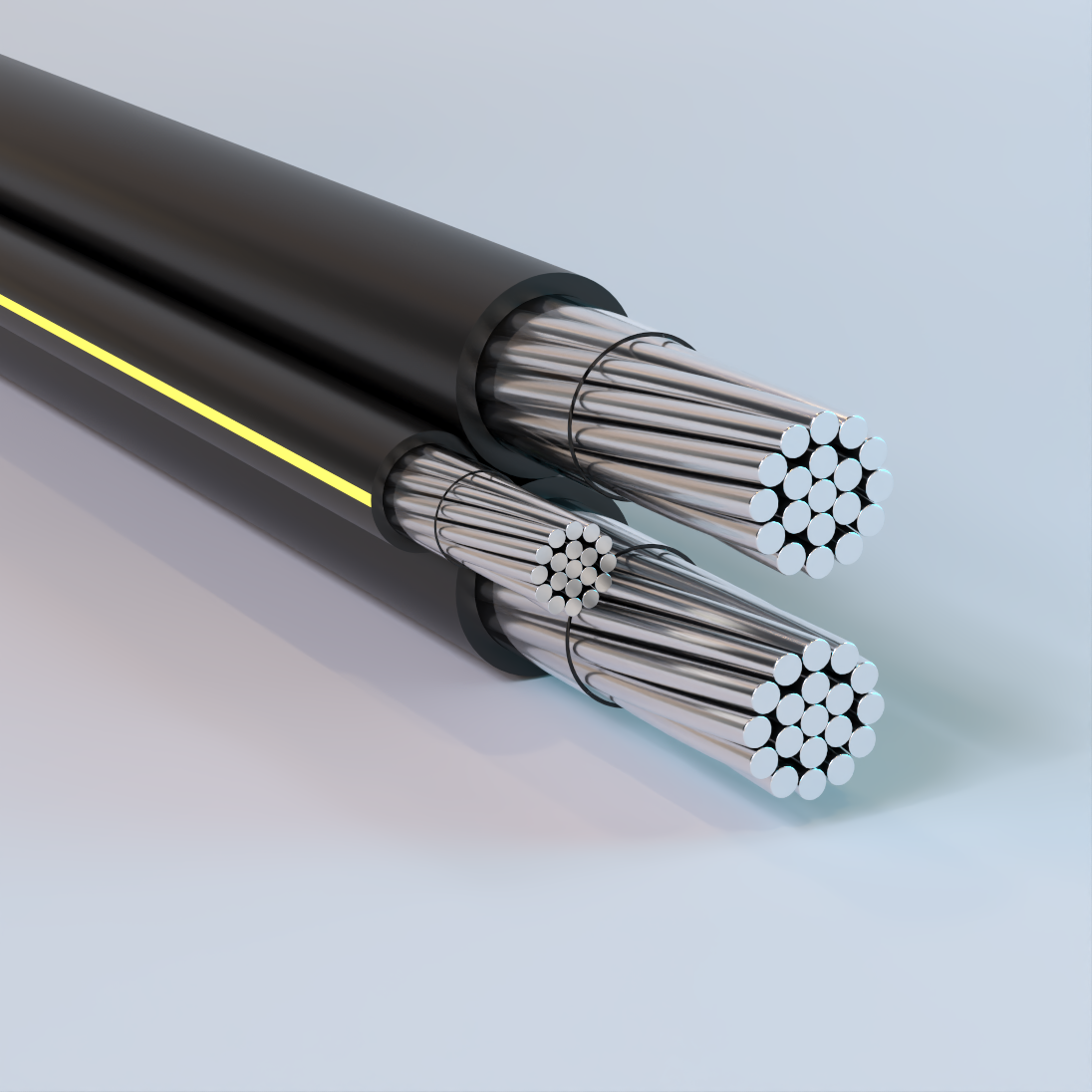

Secondary URD AA-8000, Tri-Rated
Underground, Triplex/Quadruplex, Compressed Conductor, XLPE Insulation, 600V – Aluminum
Used for secondary distribution and underground service at 600 volts or less. AA-8000 series aluminum alloy conductor is used for increased flexibility. May be used in ducts or direct burial.

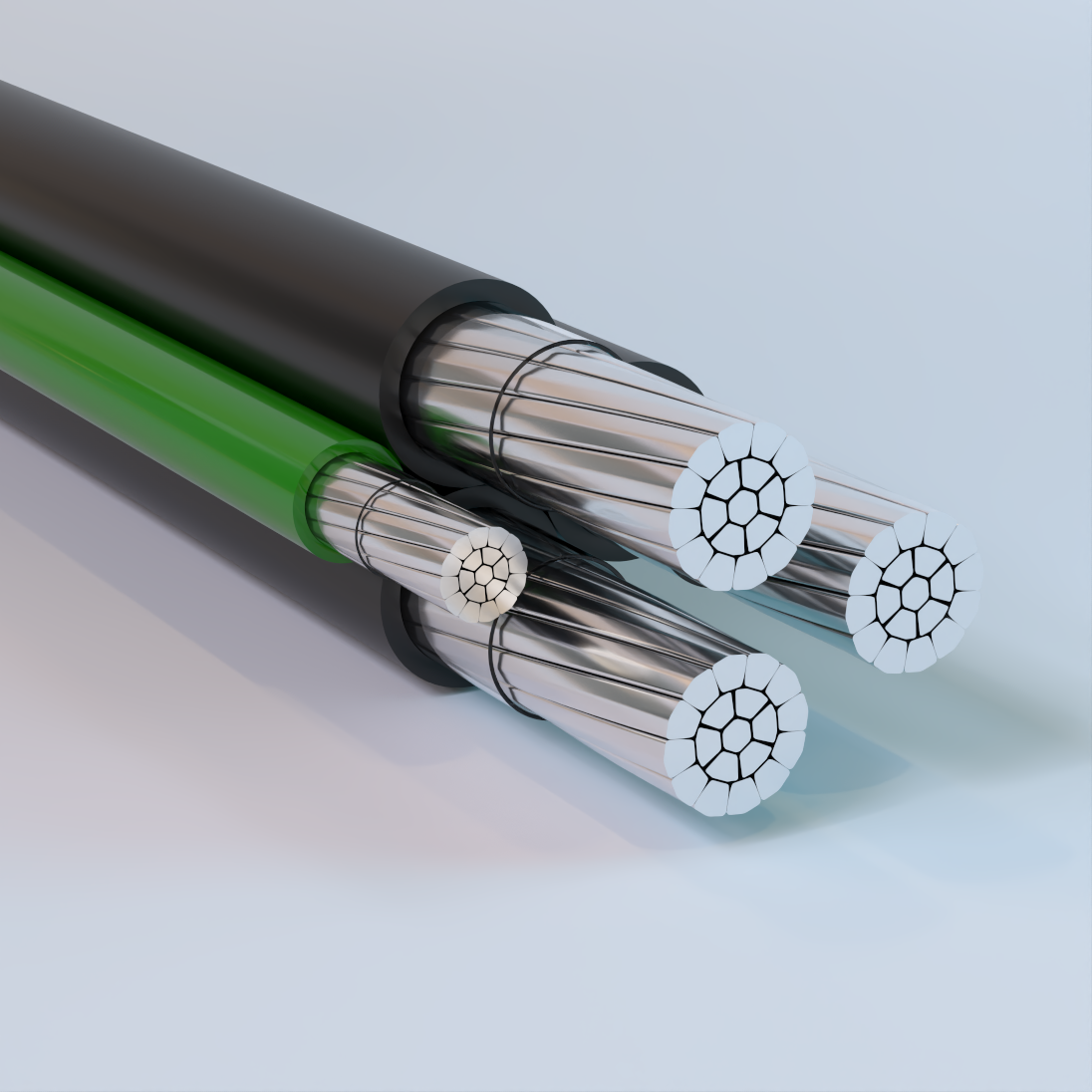

Secondary URD AA-8000, Tri-Rated, Mobile Home Feeder
Underground, Compact Conductor, XLPE Insulation, 600V – Aluminum
Designed to connect mobile homes to an electrical supply where permanent wiring is required. Can also be used for general purpose wiring in circuits not exceeding 600 volts. May be used in wet or dry locations, installed in conduit, duct, and directly buried in earth not exceeeding 90°C in accordance with requirements of the NEC®.

USE-2
XLPE Insulation, 600V – Aluminum
Used in underground installations, and as a service entrance cable. May be used in wet or dry locations, installed in conduit, duct, open air and direct burial.
