Medium & High Voltage Cable
Aluminum Conductor

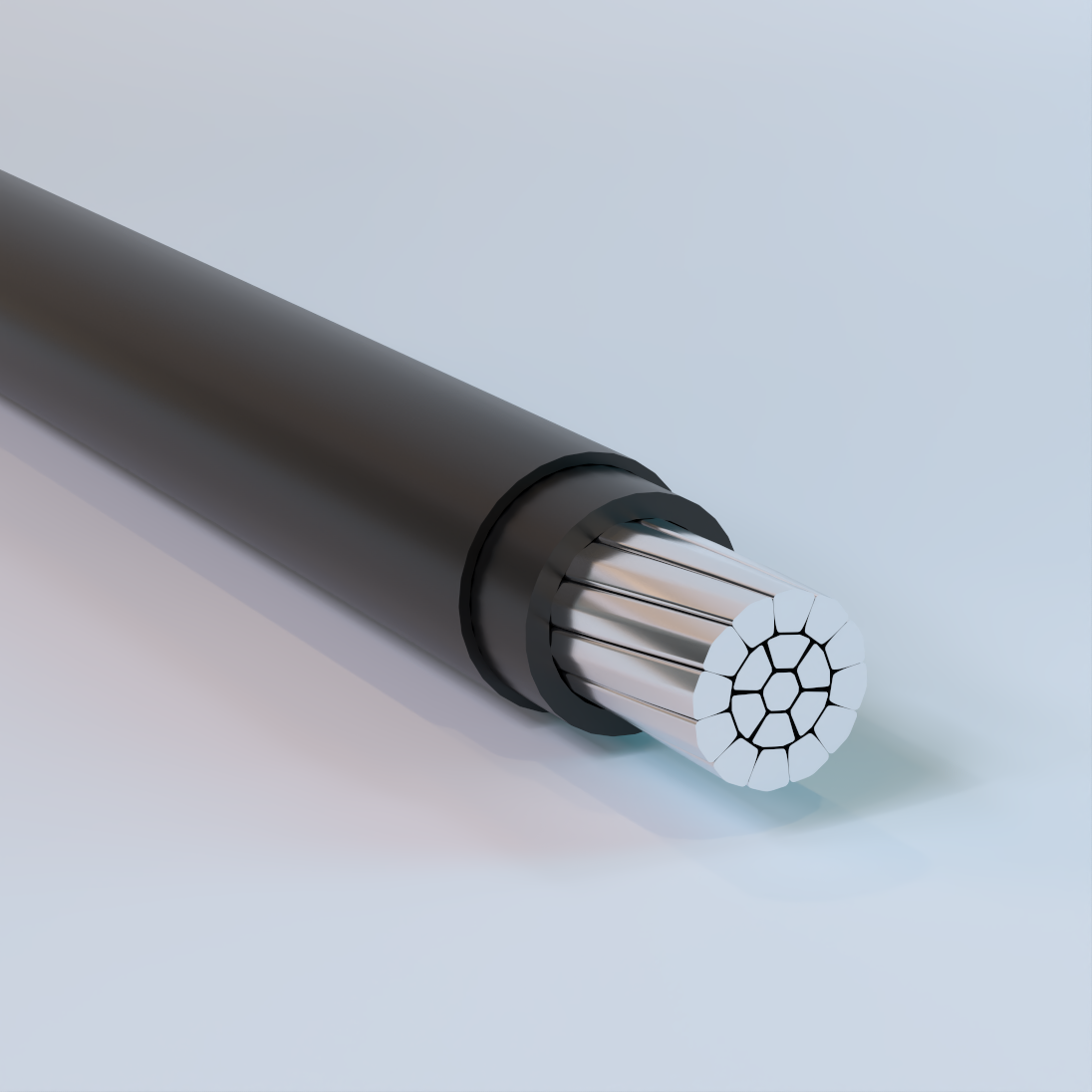

MV-90 Dry
XLPE Insulation, Non-shielded, 2.4kV – Aluminum
Used in industrial and utility applications, for dry locations in accordance with NEC®.

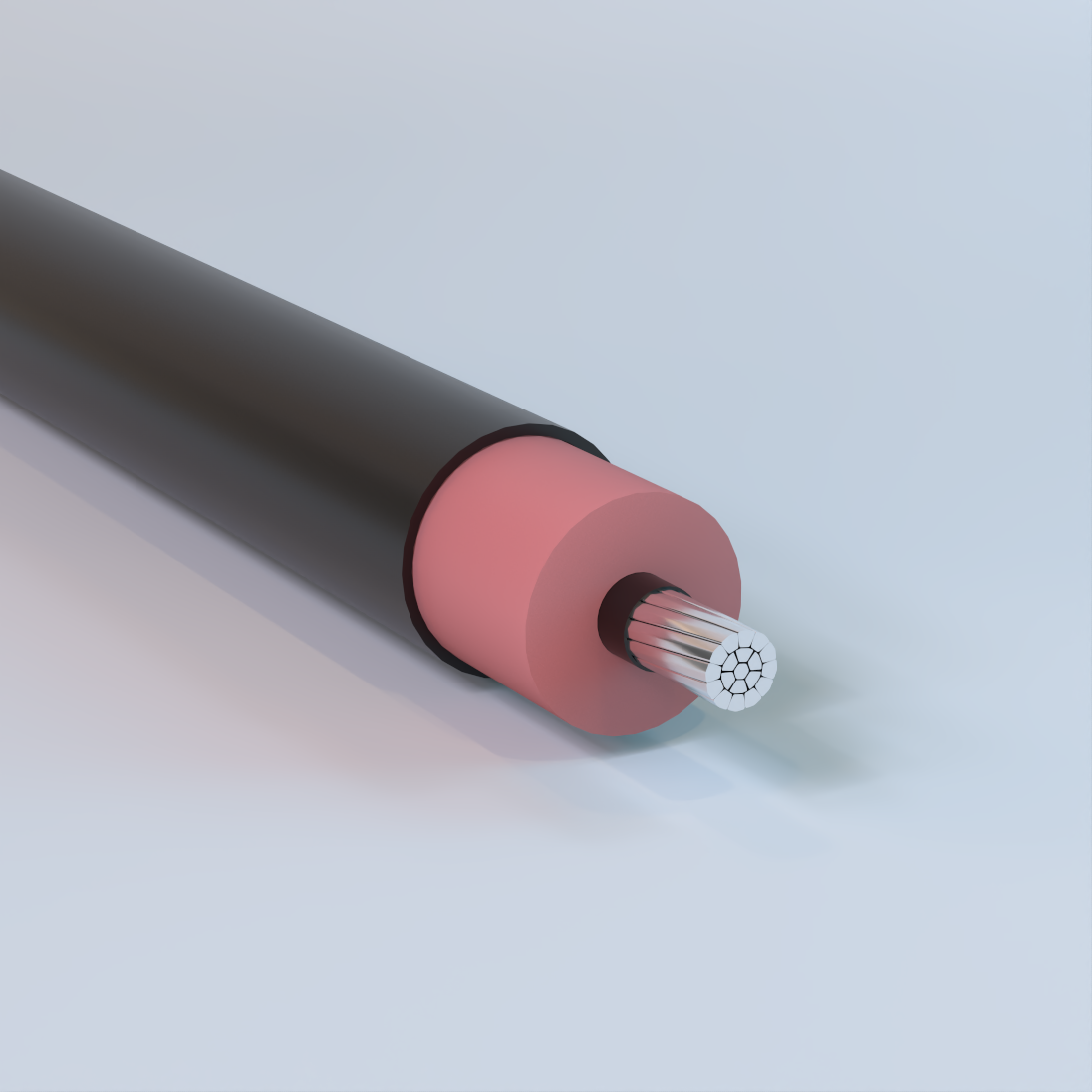

MV-90 Wet/Dry
EPR Insulation, PVC Jacket, Non-shielded, 2.4kV – Aluminum
Used in industrial and utility applications, for wet and dry locations in accordance with NEC®.
Internal Wiring, Power Cable
XLPE Insulation, Non-shielded, 5kV – Aluminum
Used, typically, for OEM equipment such as switchgear, transformers, etc. Intended solely for use as factory-installed wiring equipment (internal wiring), in industrial applications where such cable systems are maintained by trained personnel, not as type MV. These cables must be protected and are not to be in contact by personnel while energized.
Internal Wiring, Power Cable
EPR Insulation, PVC Jacket, Non-shielded, 5kV – Aluminum
Used, typically, for OEM equipment such as switchgear, transformers, etc. Intended solely for use as factory-installed wiring equipment (internal wiring), in industrial applications where such cable systems are maintained by trained personnel, not as type MV. These cables must be protected and are not to be in contact by personnel while energized.
MV-90
XLPE Insulation, PVC Jacket, Wire Shielded, 5kV-35kV – Aluminum
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, installed in raceways, duct, and open air, aerially or directly buried as permitted by NEC®.
MV-90
XLPE Insulation, PVC Jacket, Copper Tape Shielded, 5kV-35kV – Aluminum
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, indoors or outdoors, installed in raceways, duct, and open air, aerial messenger supported, or directly buried if installed with a grounding conductor in close proximity complying with NEC® Section 250.4(A)(5).
MV-90
TR-XLPE Insulation, LLDPE Jacket, Copper Tape Shielded, 5kV-35kV – Aluminum
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, indoors or outdoors, installed in raceways, duct, and open air, aerial messenger supported, or directly buried if installed with a grounding conductor in close proximity complying with NEC® Section 250.4(A)(5).
MV-90
EPR Insulation, PE Jacket, Longitudinal Corrugated (LC) Copper Tape Shielded, 5kV-35kV – Aluminum
Used for underground primary residential and commercial distribution circuits. May be used in wet or dry loctions, installed in underground ducts.

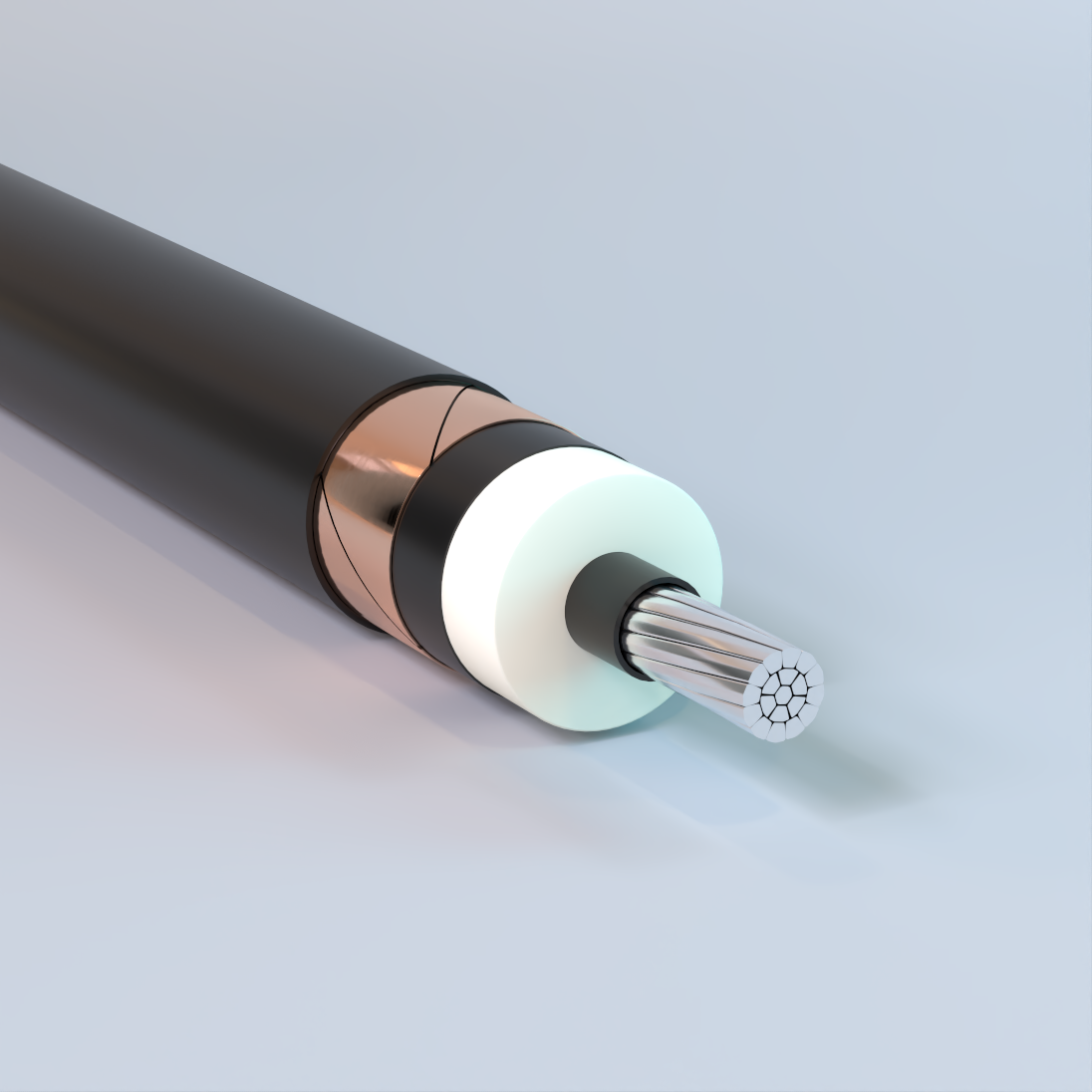

MV-105
EPR Insulation, PVC Jacket, Copper Tape Shielded, 5kV-35kV – Aluminum
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, indoors or outdoors, installed in raceways, duct, and open air, aerial messenger supported, or directly buried if installed with a grounding conductor in close proximity complying with NEC® Section 250.4(A)(5).
MV-105
EPR Insulation, CPE Jacket, Copper Tape Shielded, 5kV-35kV – Aluminum
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, indoors or outdoors, installed in raceways, duct, and open air, aerial messenger supported, or directly buried if installed with a grounding conductor in close proximity complying with NEC® Section 250.4(A)(5).
MV-105
TR-XLPE Insulation, PVC Jacket, Copper Tape Shielded, 5kV-35kV – Aluminum
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, indoors or outdoors, installed in raceways, duct, and open air, aerial messenger supported, or directly buried if installed with a grounding conductor in close proximity complying with NEC® Section 250.4(A)(5).
MV-105
TR-XLPE Insulation, PVC Jacket, Wire Shielded, 5kV-35kV – Aluminum
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, indoors or outdoors, installed in raceways, duct, and open air, aerial messenger supported, or directly buried if installed with a grounding conductor in close proximity complying with NEC® Section 250.4(A)(5).

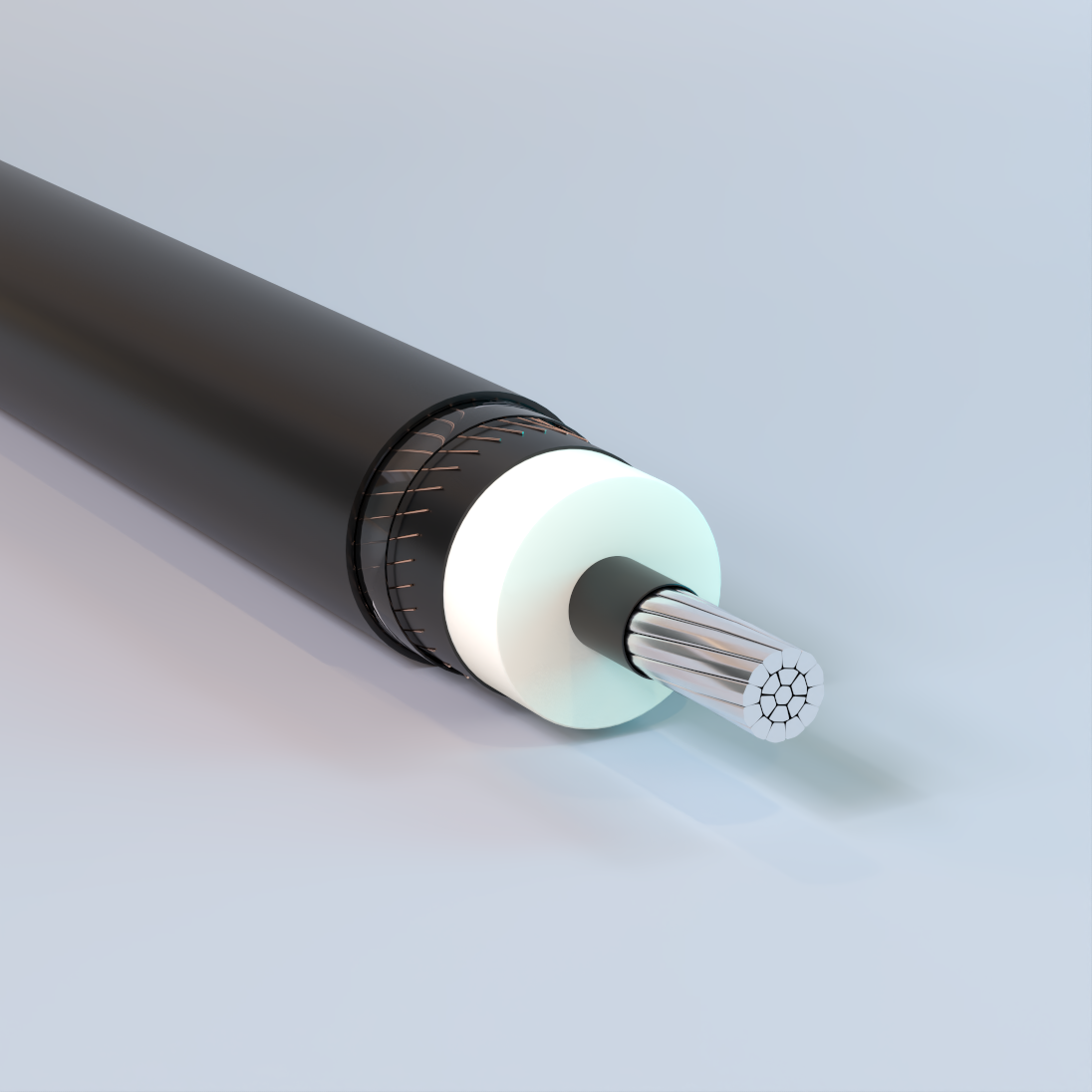

MV-105
EPR Insulation, LSOH Jacket, Copper Tape Shielded, 5kV-35kV – Aluminum
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, indoors or outdoors, installed in raceways, duct, and open air, aerial messenger supported, or directly buried if installed with a grounding conductor in close proximity complying with NEC® Section 250.4(A)(5).

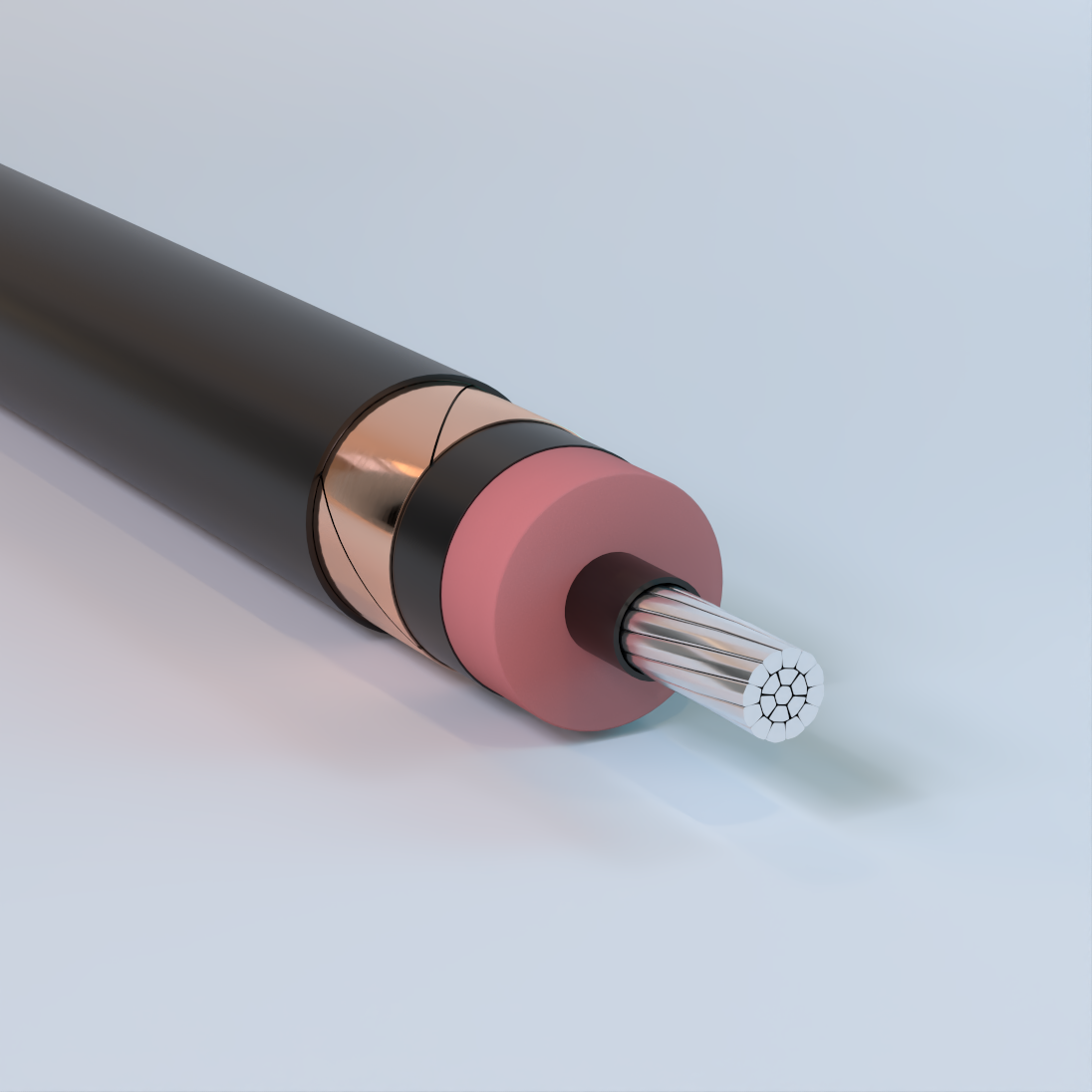

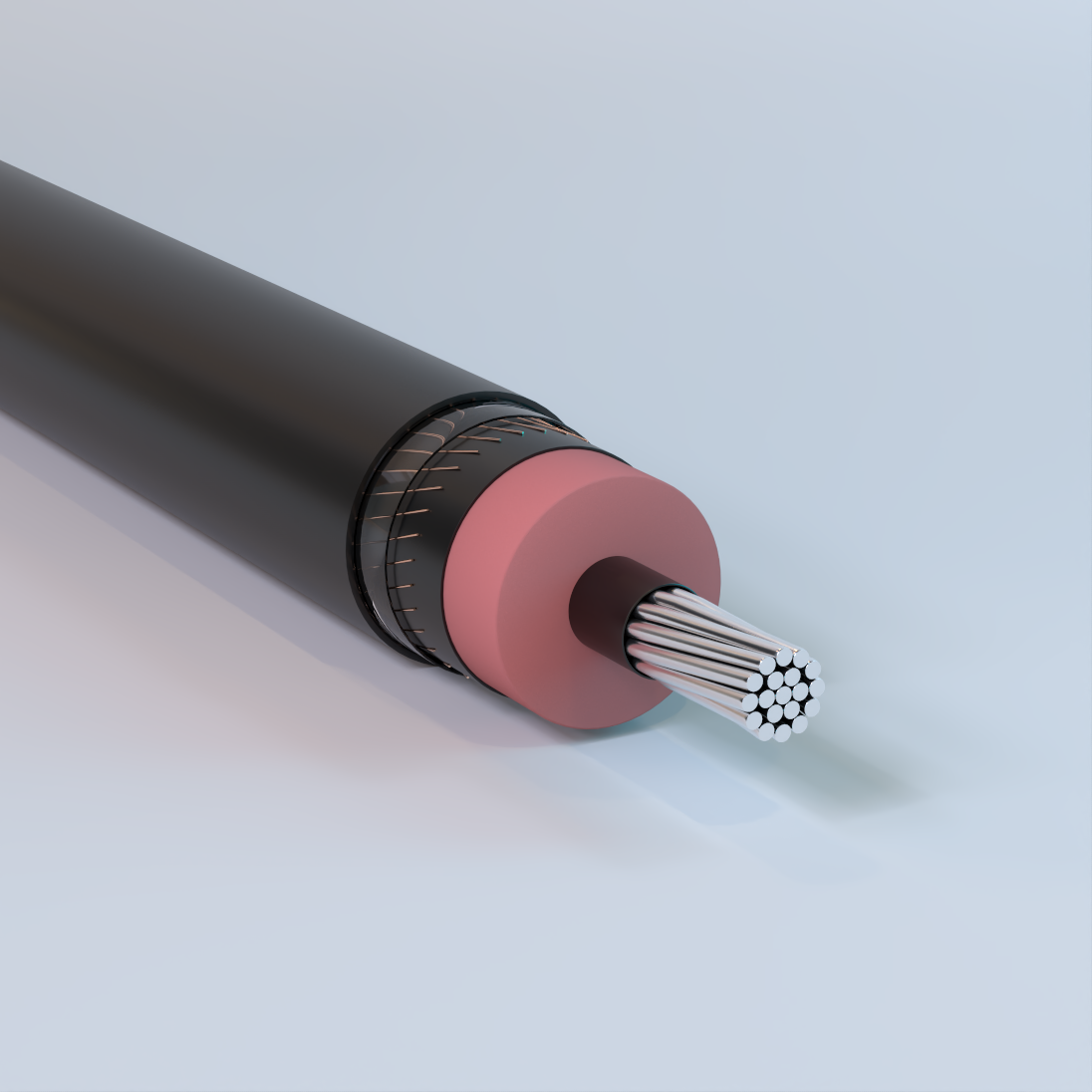

MV-105
EPR Insulation, PVC Jacket, Wire Shielded, 5kV-35kV – Aluminum
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, indoors or outdoors, installed in raceways, duct, and open air, aerial messenger supported, or directly buried if installed with a grounding conductor in close proximity complying with NEC® Section 250.4(A)(5).

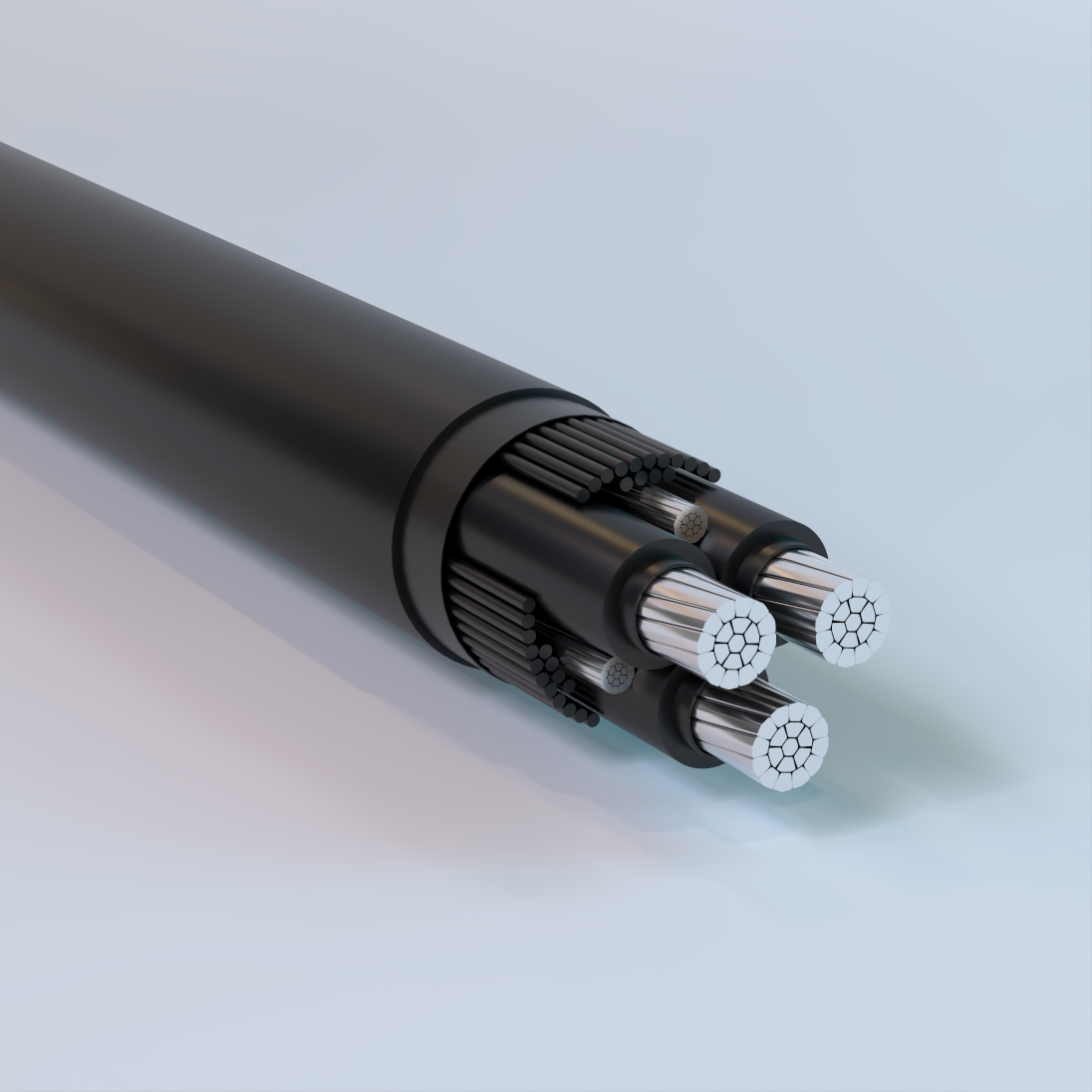

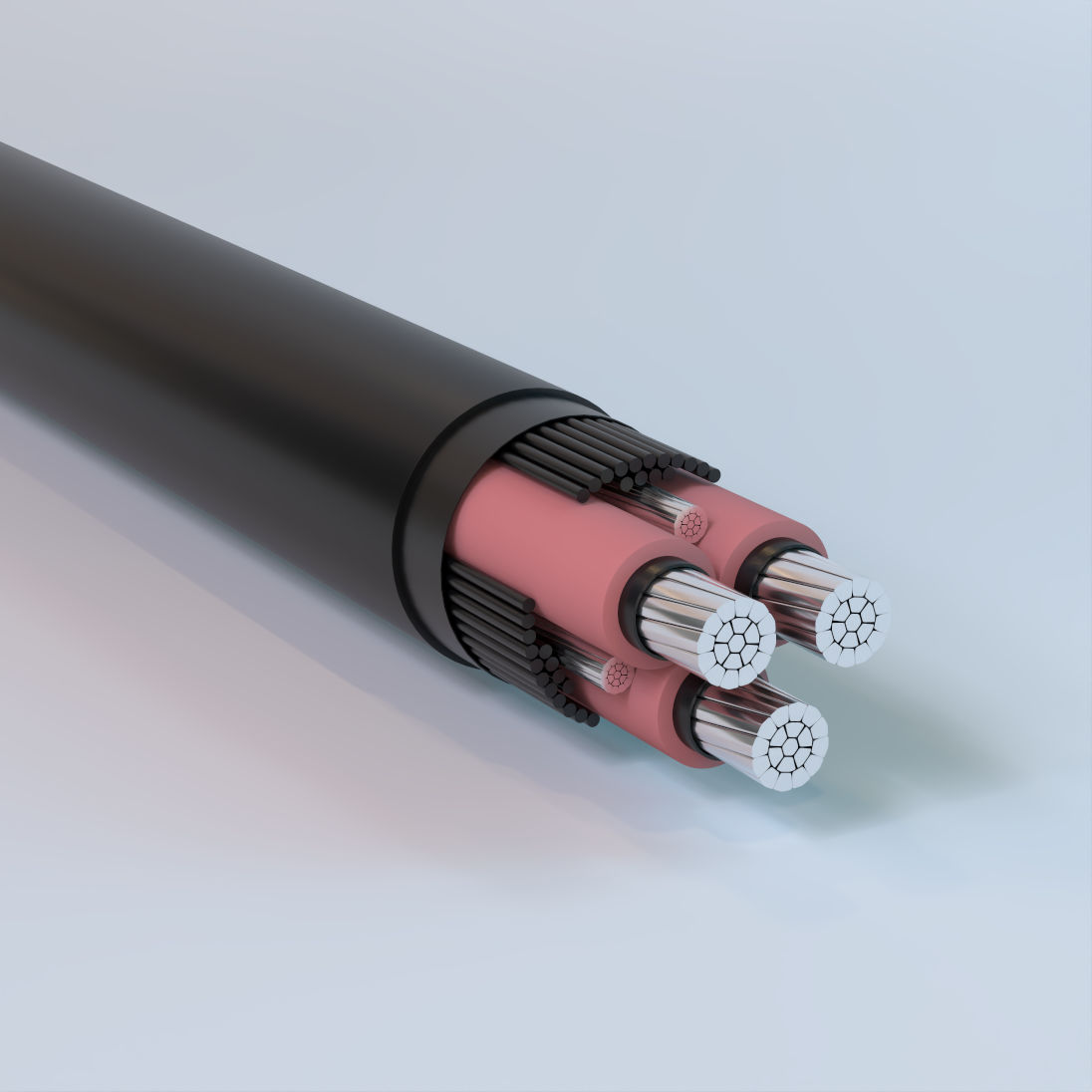

MV-90 3C
XLPE Insulation, PVC Jacket, Non-shielded, 2.4kV – Aluminum
Used in power system in industrial establishments and utility applications, for dry locations, in accordance with NEC®.
MV-90 3C
EPR Insulation, PVC Jacket, Non-shielded, 2.4kV – Aluminum
Used in power system in industrial establishments and utility applications, for dry locations, in accordance with NEC®.

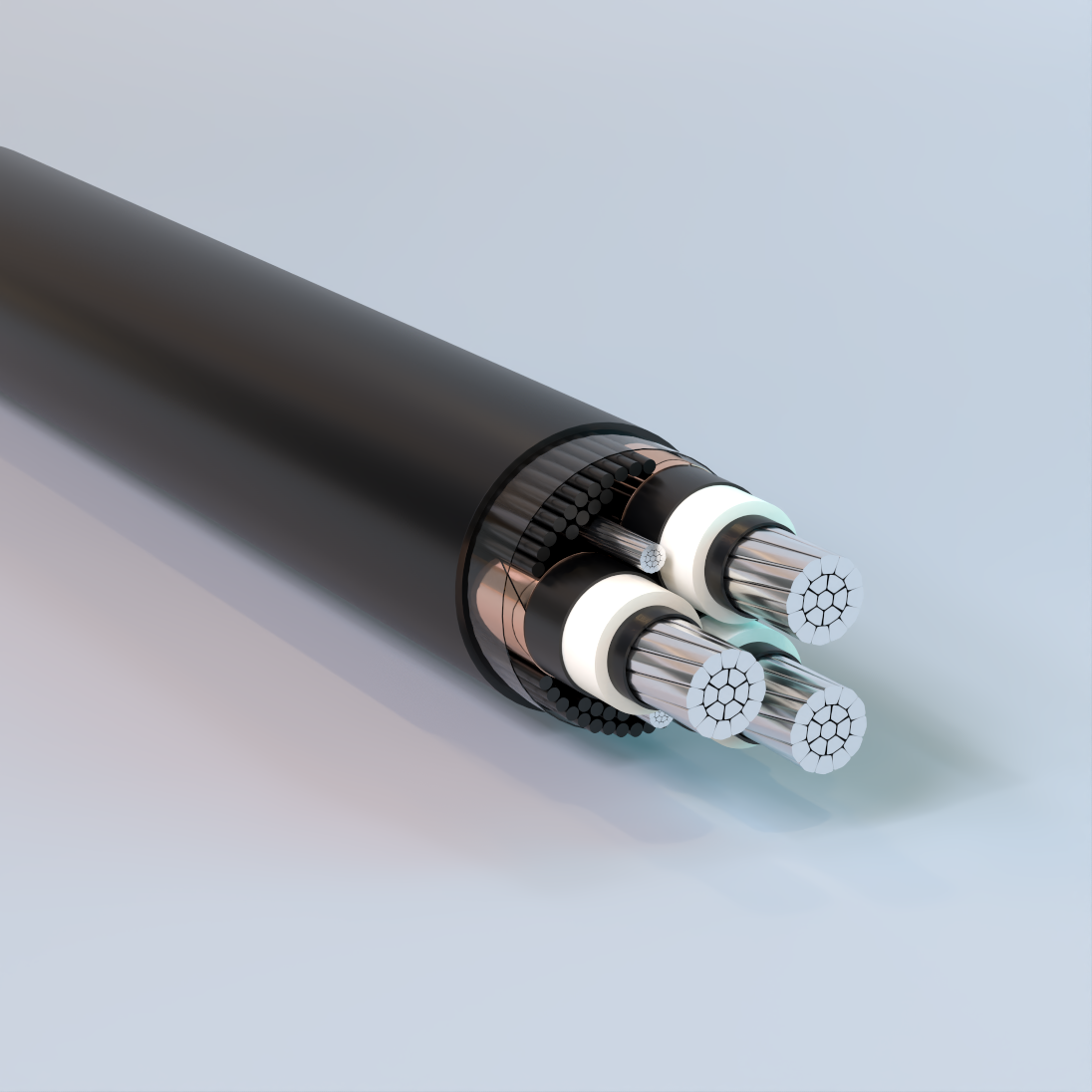

MV-90 3C
XLPE Insulation, PVC Jacket, Copper Tape Shielded, 25kV-35kV – Aluminum
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, installed in raceways, duct, and open air, aerially or directly buried where permitted by NEC®.

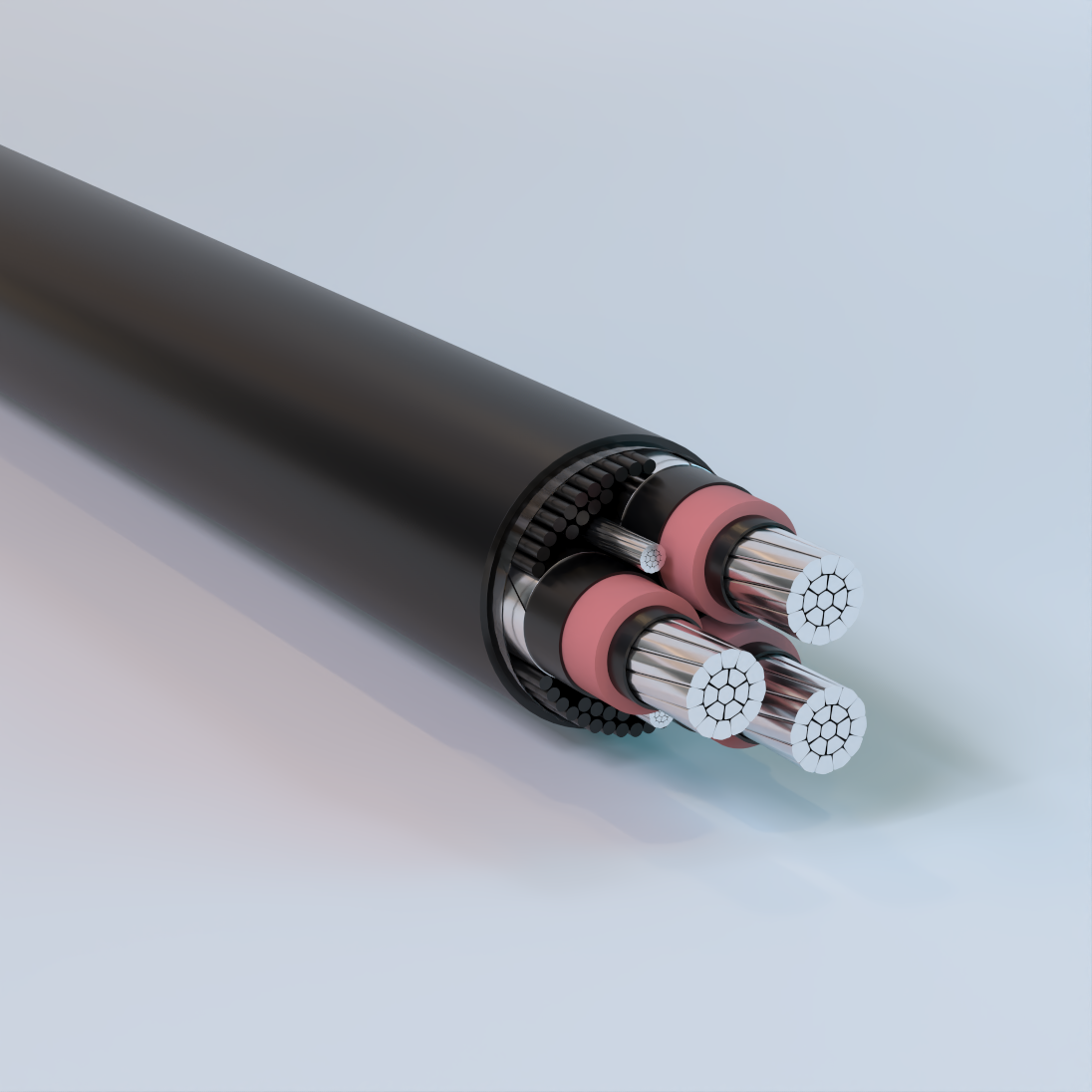

MV-105 3C
EPR Insulation, PVC Jacket, Copper Tape Shielded, 5kV-35kV – Aluminum
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, installed in raceways, duct, and open air, aerially or directly buried where permitted by NEC®.
MV-105 3C
EPR Insulation, CPE Jacket, Tinned Copper Tape Shielded, 5kV-25kV – Aluminum
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, installed in raceways, duct, and open air, aerially or directly buried where permitted by NEC®.
MV-105 3C
TR-XLPE Insulation, PVC Jacket, Copper Tape Shielded, 5kV-35kV – Aluminum
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, installed in raceways, duct, and open air, aerially or directly buried where permitted by NEC®.

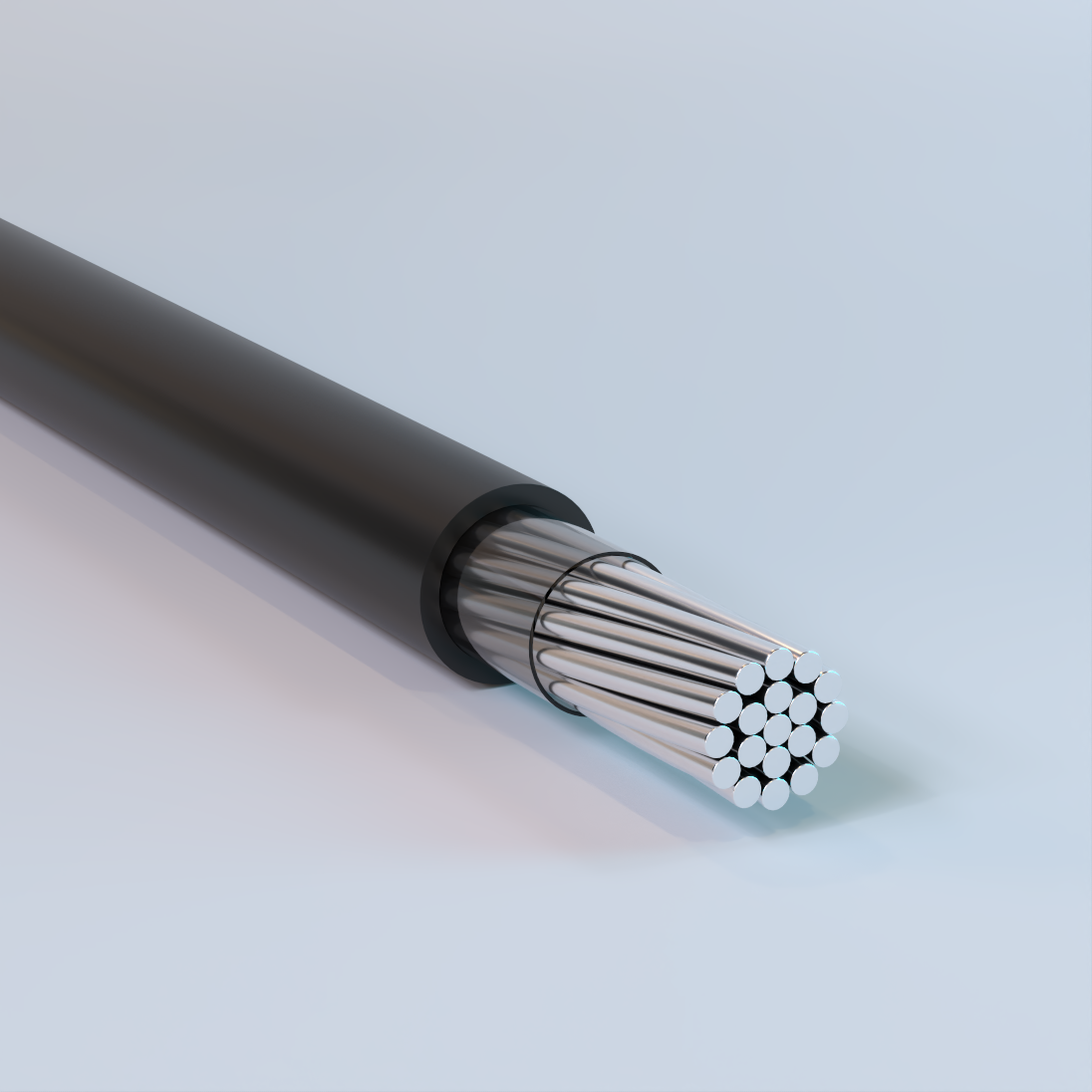

Photovoltaic Cable (PV) AA-8000
XLPE Insulation, 600V, 1kV & 2kV – Aluminum
For interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Wiring Systems, Article 690, and other applicable parts of the National Electrical Code (NEC), NFPA 70.
Photovoltaic Cable (PV) AA-8000
EPCV Insulation, 600V, 1kV & 2kV – Aluminum
For interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Wiring Systems, Article 690, and other applicable parts of the National Electrical Code (NEC), NFPA 70.

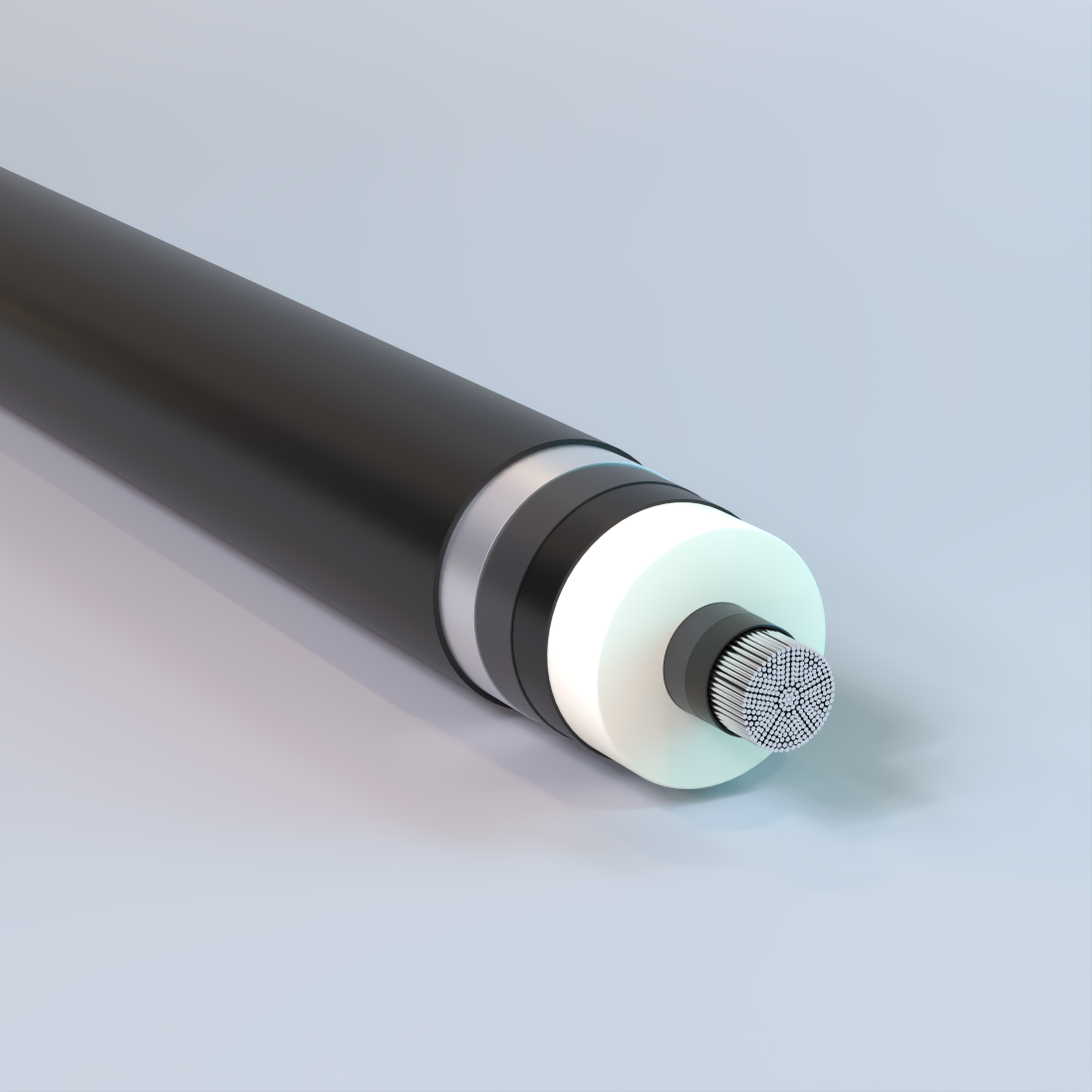

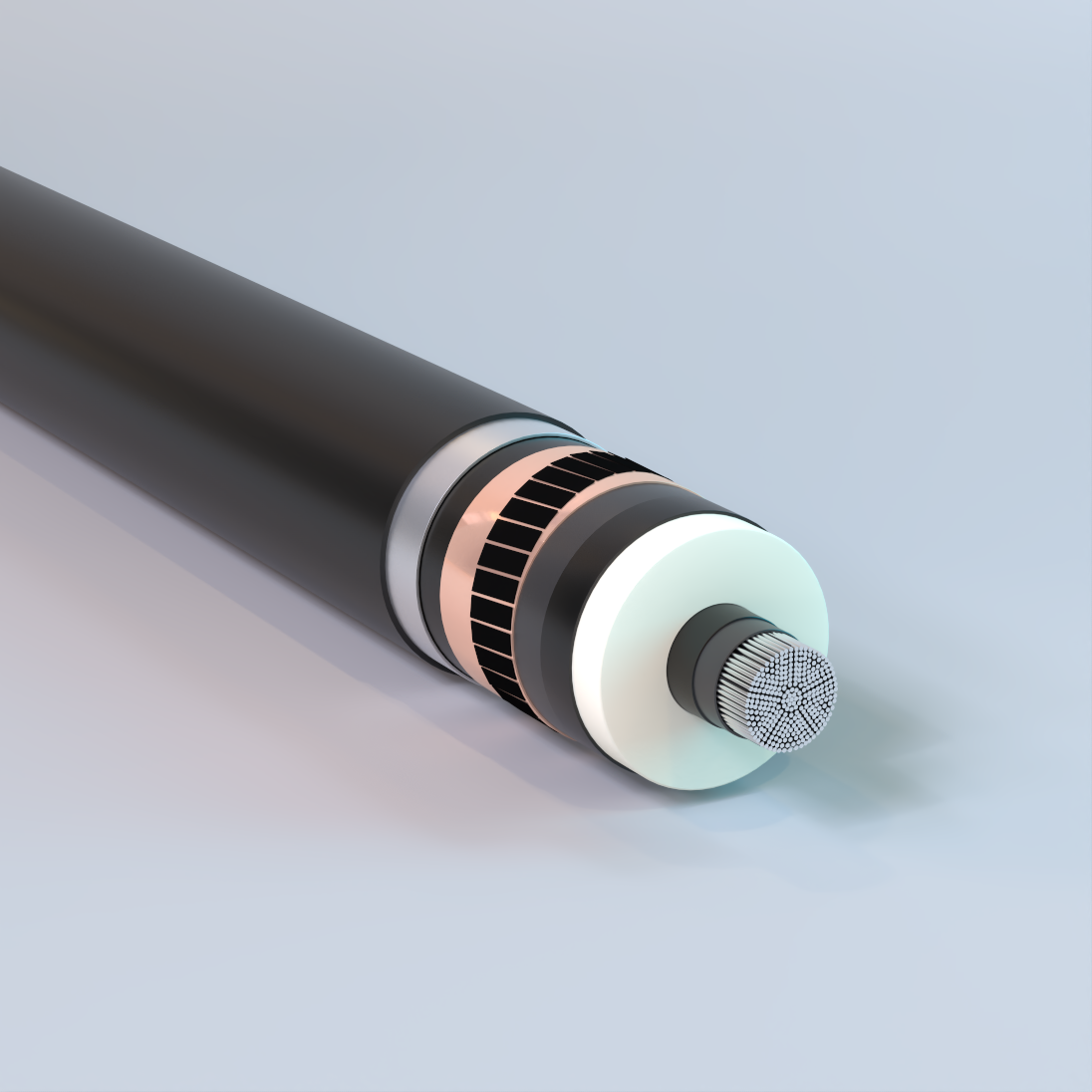

High Voltage, Smooth Aluminum Shield/Sheath
XLPE Insulation, HDPE Jacket, 69kV-138kV – Aluminum
Used for transmission and distribution circuits in cities with high load densities. Also, for industrial and commercial installations. May be installed in wet or dry locations indoors or outdoors in conduit and underground ducts.
High Voltage, Wire and Tape Shield
XLPE Insulation, HDPE Jacket, 69kV-138kV – Aluminum
Used for transmission and distribution circuits in cities with high load densities. Also, for industrial and commercial installations. May be installed in wet or dry locations indoors or outdoors in conduit and underground ducts.

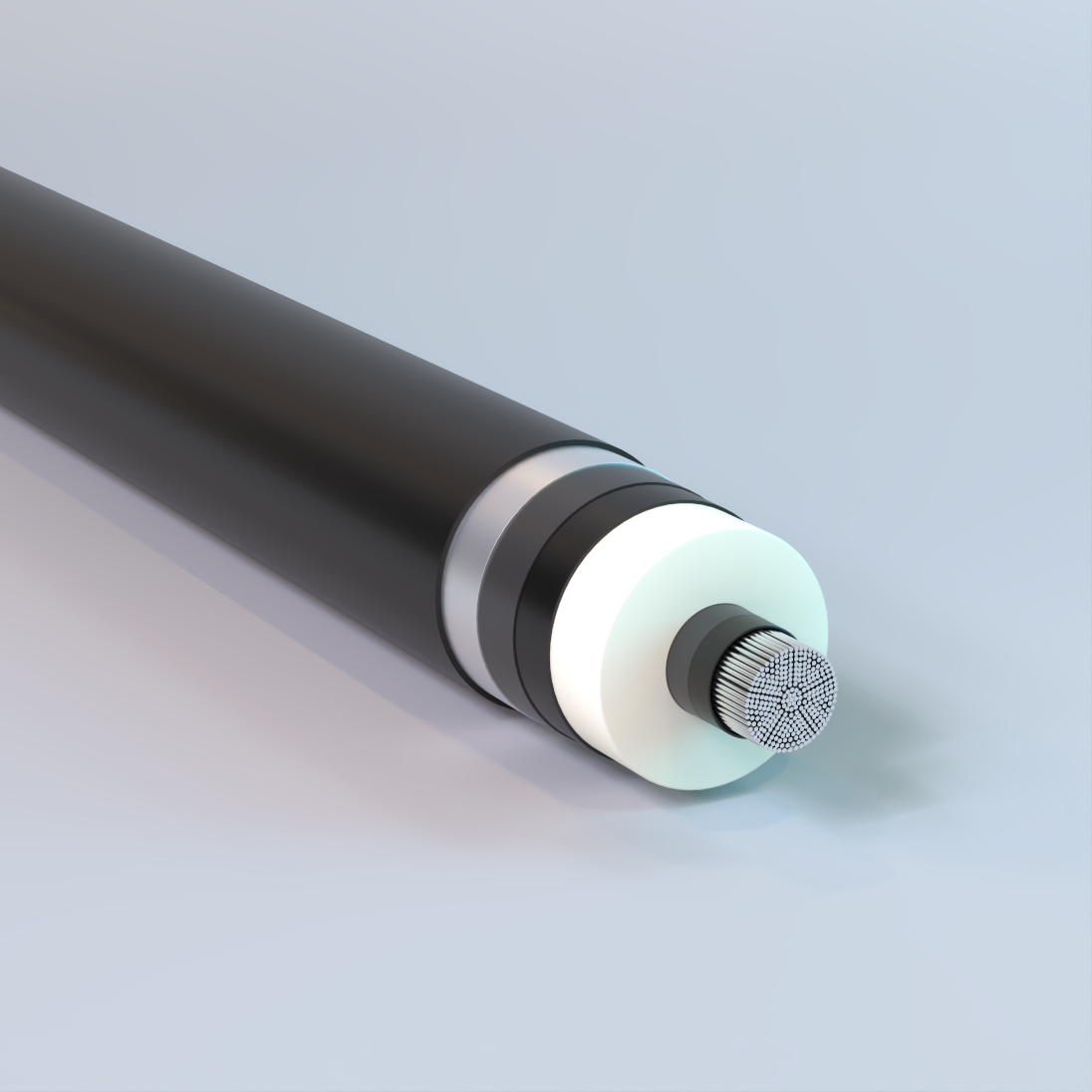

Extra High Voltage, Smooth Aluminum Shield/Sheath
XLPE Insulation, HDPE Jacket, 230kV – Aluminum
Used for transmission systems in urban and industrial installations with high load density. May be installed in wet or dry locations indoors or outdoors in conduit and underground ducts.
Copper Conductor
MV-90 Dry
XLPE Insulation, Non-shielded, 2.4kV – Copper
Used in industrial and utility applications, for dry locations in accordance with NEC®.
MV-90 Wet/Dry
EPR Insulation, PVC Jacket, Non-shielded, 2.4kV – Copper
Used in industrial and utility applications, for wet and dry locations in accordance with NEC®.
Internal Wiring, Power Cable
XLPE Insulation, PVC Jacket or Unjacketed, Non-shielded, 2.4kV – Copper
Used, typically, for OEM equipment such as switchgear, transformers, etc. Intended solely for use as factory-installed wiring equipment (internal wiring), in industrial applications where such cable systems are maintained by trained personnel, not as type MV. These cables must be protected and are not to be in contact by personnel while energized.
Internal Wiring, Power Cable
XLPE Insulation, Non-shielded, 5kV – Copper
Used, typically, for OEM equipment such as switchgear, transformers, etc. Intended solely for use as factory-installed wiring equipment (internal wiring), in industrial applications where such cable systems are maintained by trained personnel, not as type MV. These cables must be protected and are not to be in contact by personnel while energized.
MV-90
XLPE Insulation, PVC Jacket, Wire Shielded, 5kV-35kV – Copper
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, installed in raceways, duct, and open air, aerially or directly buried as permitted by NEC®.
MV-90
XLPE Insulation, PVC Jacket, Copper Tape Shielded, 5kV-35kV – Copper
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, indoors or outdoors, installed in raceways, duct, and open air, aerial messenger supported, or directly buried if installed with a grounding conductor in close proximity complying with NEC® Section 250.4(A)(5).
MV-90
TR-XLPE Insulation, LLDPE Jacket, Copper Tape Shielded, 5kV-35kV – Copper
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, indoors or outdoors, installed in raceways, duct, and open air, aerial messenger supported, or directly buried if installed with a grounding conductor in close proximity complying with NEC® Section 250.4(A)(5).
MV-90
EPR Insulation, PE Jacket, Longitudinal Corrugated (LC) Copper Tape Shielded, 5kV-35kV – Copper
Used for underground primary residential and commercial distribution circuits. May be used in wet or dry loctions, installed in underground ducts.
MV-105
EPR Insulation, PVC Jacket, Copper Tape Shielded, 5kV-35kV – Copper
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, indoors or outdoors, installed in raceways, duct, and open air, aerial messenger supported, or directly buried if installed with a grounding conductor in close proximity complying with NEC® Section 250.4(A)(5).
MV-105
EPR Insulation, CPE Jacket, Copper Tape Shielded, 5kV-35kV – Copper
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, indoors or outdoors, installed in raceways, duct, and open air, aerial messenger supported, or directly buried if installed with a grounding conductor in close proximity complying with NEC® Section 250.4(A)(5).
MV-105
TR-XLPE Insulation, PVC Jacket, Copper Tape Shielded, 5kV-35kV – Copper
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, indoors or outdoors, installed in raceways, duct, and open air, aerial messenger supported, or directly buried if installed with a grounding conductor in close proximity complying with NEC® Section 250.4(A)(5).
MV-105
TR-XLPE Insulation, PVC Jacket, Wire Shielded, 5kV-35kV – Copper
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, indoors or outdoors, installed in raceways, duct, and open air, aerial messenger supported, or directly buried if installed with a grounding conductor in close proximity complying with NEC® Section 250.4(A)(5).
MV-105
EPR Insulation, LSOH Jacket, Copper Tape Shielded, 5kV-35kV – Copper
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, indoors or outdoors, installed in raceways, duct, and open air, aerial messenger supported, or directly buried if installed with a grounding conductor in close proximity complying with NEC® Section 250.4(A)(5).
MV-90 3C
XLPE Insulation, PVC Jacket, Non-shielded, 2.4kV – Copper
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, indoors or outdoors, installed in raceways, duct, and open air, aerial messenger supported, or directly buried if installed with a grounding conductor in close proximity complying with NEC® Section 250.4(A)(5).
MV-90 3C
EPR Insulation, PVC Jacket, Non-shielded, 2.4kV – Copper
Used in power system in industrial establishments and utility applications, for dry locations, in accordance with NEC®.
MV-90 3C
XLPE Insulation, PVC Jacket, Copper Tape Shielded, 25kV-35kV – Copper
Used in power system in industrial establishments and utility applications, for dry locations, in accordance with NEC®.
MV-105 3C
EPR Insulation, PVC Jacket, Copper Tape Shielded, 5kV-35kV – Copper
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, installed in raceways, duct, and open air, aerially or directly buried where permitted by NEC®.
MV-105 3C
EPR Insulation, CPE Jacket, Tinned Copper Tape Shielded, 5kV-25kV – Copper
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, installed in raceways, duct, and open air, aerially or directly buried where permitted by NEC®.
MV-105 3C
TR-XLPE Insulation, PVC Jacket, Copper Tape Shielded, 5kV-35kV – Copper
Used for primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, installed in raceways, duct, and open air, aerially or directly buried where permitted by NEC®.
Type W Mining Cable
EPR Insulation, CPE Jacket, 2kV – Tinned Coated Copper
Type W is a portable or fixed power cable used in mining and industrial applications where high reliability is required. For use in wet or dry locations, installed in conduits, ducts or trays and sunlight exposed.
Type W 2C-4C Mining Cable
EPR Insulation, CPE Jacket, 2kV – Tinned Coated Copper
Trailing cable on ac mining equipment where a ground check conductor is not required for fail-safe ground monitoring. For use where arc suppressors or diodes are utilized for grounding monitoring, or induced voltages do not present a problem.
Type G-GC 3C Mining Cable
EPR Insulation, CPE Jacket, 2kV – Tinned Coated Copper
Trailing cable on ac mining equipment where a ground conductor is required. For use where induced voltages in grounding system will not produce a hazard.
Type SHD-GC 3C Mining Cable
EPR Insulation, CPE Jacket, Composite Fiber Copper Braid Shielded, 2kV – Tinned Coated Copper
For use with Bretby type cable handling devices on longwall machines and as trailing cable on ac mining equipment where a ground check conductor is required for fail-safe ground monitoring. For use where induce voltages in grounding system will not produce a hazard. This cable is designed for use on low and medium voltage AC circuits where shielding is desired or required.
Type SHD-GC 3C Mining Cable
EPR Insulation, CPE Jacket, Composite Fiber Copper Braid Shielded, 100% I.L., 5kV-25kV – Tinned Coated Copper
Trailing cable on ac mining equipment where service conditions are severe and maximum safety is mandatory; such as power shovels and drag lines in open-pit mines, quarries, gantry cranes and slag reclaiming.
Type MP-GC Mining Cable
XLPE Insulation, PVC Jacket, Copper Tape Shielded, 100% & 133% I.L., 5kV-25kV – Copper
High voltage distribution intended for permanent installations. Suitable for underground mining and boreholes. Can be used in aerial installations, ducts or direct burial.
Type MP-GC Mining Cable
EPR Insulation, CPE Jacket, Copper Tape Shielded, 100% & 133% I.L., 5kV-25kV – Copper
High voltage distribution intended for permanent installations. Suitable for underground mining and boreholes. Can be used in aerial installations, ducts or direct burial.
Flexible DLO (Diesel Locomotive Cable) RHH/RHW-2
EPR Insulation, CPE Jacket, 2kV – Copper
Used where flexible stranded conductors are required in fixed wiring installations using RHH/RHW-2 rating. As power cable used in DLO locomotive cable, railroad and transit car wiring where high reliability is required. Also suitable for use in static and dynamic wind power applications. For portable and fixed installations leads for motors, generators, and batteries.
Diesel Locomotive Cable (DLO)
EPR Insulation, CPE Jacket, 2kV – Tinned Coated Copper
As power cable used in DLO locomotive cable in diesel locomotive cable, railroad and transit car wiring where high reliability is required. Also suitable for use in static and dynamic wind power applications. For portable and fixed installations leads for motors, generators, and batteries.
Diesel Locomotive Cable (DLO)
EPR Insulation, CPE Jacket, 600V, 1kV & 2kV – Copper
Suitable for use in static and dynamic wind power applications. For portable and fixed installations leads for motors, generators, and batteries. Also as power cable used as DLO locomotive cable in railroad and transit car wiring.
Traction Cable
EPR Insulation, XLPO Jacket, LSOH Jacket, 2kV – Copper
Used for underground installation in non-metallic, concrete encased duct bank or pendant trapeze struts and supported by insulating clamps in substations. Suitable for use in wet and dry locations, and to operate continuously at rated value temperature range of -40° to 90°C.
Photovoltaic Cable (PV)
XLPE Insulation, 600V, 1kV & 2kV – Copper
For interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Wiring Systems, Article 690, and other applicable parts of the National Electrical Code (NEC), NFPA 70.
Photovoltaic Cable (PV)
EPCV Insulation, 600V, 1kV & 2kV – Copper
For interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Wiring Systems, Article 690, and other applicable parts of the National Electrical Code (NEC), NFPA 70.
Photovoltaic Cable (PV)
EPR Insulation, CPE Jacket, 600V, 1kV & 2kV – Tinned Coated Copper
For interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Wiring Systems, Article 690, and other applicable parts of the National Electrical Code (NEC), NFPA 70.
Airport Lighting Cable
XLPE Insulation, FAA L-824, Type C, Non-shielded, 5kV – Copper
Designed for use in airport control and lighting circuits. May be used in wet or dry locations, installed in conduit, duct or direct burial.
Type P Drilling Rig & Marine Cable
Power/Distribution Cable, Single Conductor, XLPO Insulation, Heavy Duty Arctic Type CPE Jacket, Armored or Unarmored, or Armored & Sheathed, 2000V – Tinned Coated Copper
Designed for the installation and use in marine environments, for use on offshore drilling rigs, aboard marine vessels, and on fixed and floating offshore facilities where harsh marine environments exist. Used for the distribution of power in circuits rated for 2000 volts. Typical applications include DC motor cables, generators, transformers, top drives, and other applications that may require a highly flexible rugged power cable.
Type P VFD Power Cable, Drilling Rig & Marine Cable
Three (3) Conductors, XLPO Insulation, Heavy Duty Arctic Type CPE Jacket, Armored or Unarmored, or Armored & Sheathed, 2000V – Tinned Coated Copper
Used in variable frequency AC motor driver (VFD) applications. Flexible conductors for easy handling and installation, with an overall composite shield formed by a copper wire braid and an aluminum foil shield providing 100% coverage to contain the VFD EMI emissions, and with grounding conductors distributed symmetrical to reduce induced voltage imbalances and carry common mode noise back to the drive.
High Voltage, Smooth Aluminum Shield/Sheath
XLPE Insulation, HDPE Jacket, 69kV-138kV – Copper
Used for transmission and distribution circuits in cities with high load densities. Also, for industrial and commercial installations. May be installed in wet or dry locations indoors or outdoors in conduit and underground ducts.
High Voltage, Wire and Tape Shield
XLPE Insulation, HDPE Jacket, 69kV-138kV – Copper
Used for transmission and distribution circuits in cities with high load densities. Also, for industrial and commercial installations. May be installed in wet or dry locations indoors or outdoors in conduit and underground ducts.
Extra High Voltage, Smooth Aluminum Shield/Sheath
XLPE Insulation, HDPE Jacket, 230kV – Copper
Used for transmission systems in urban and industrial installations with high load density. May be installed in wet or dry locations indoors or outdoors in conduit and unerground ducts.
